TANGO

La serie di altoparlanti  Tango  è realizzata in MDF collegato ad un angolo di 45 ° e rivestita con un foglio di vinile con un effetto 3D , con una fedele imitazione del legno.Il nuovo design presenta una cornice elegantemente retratta.  Gli altoparlanti della serie AQ Tango possono supportare qualsiasi genere di musica, il loro suono non deluderà sia gli appassionati di home cinema che i fan della musica rock densa .

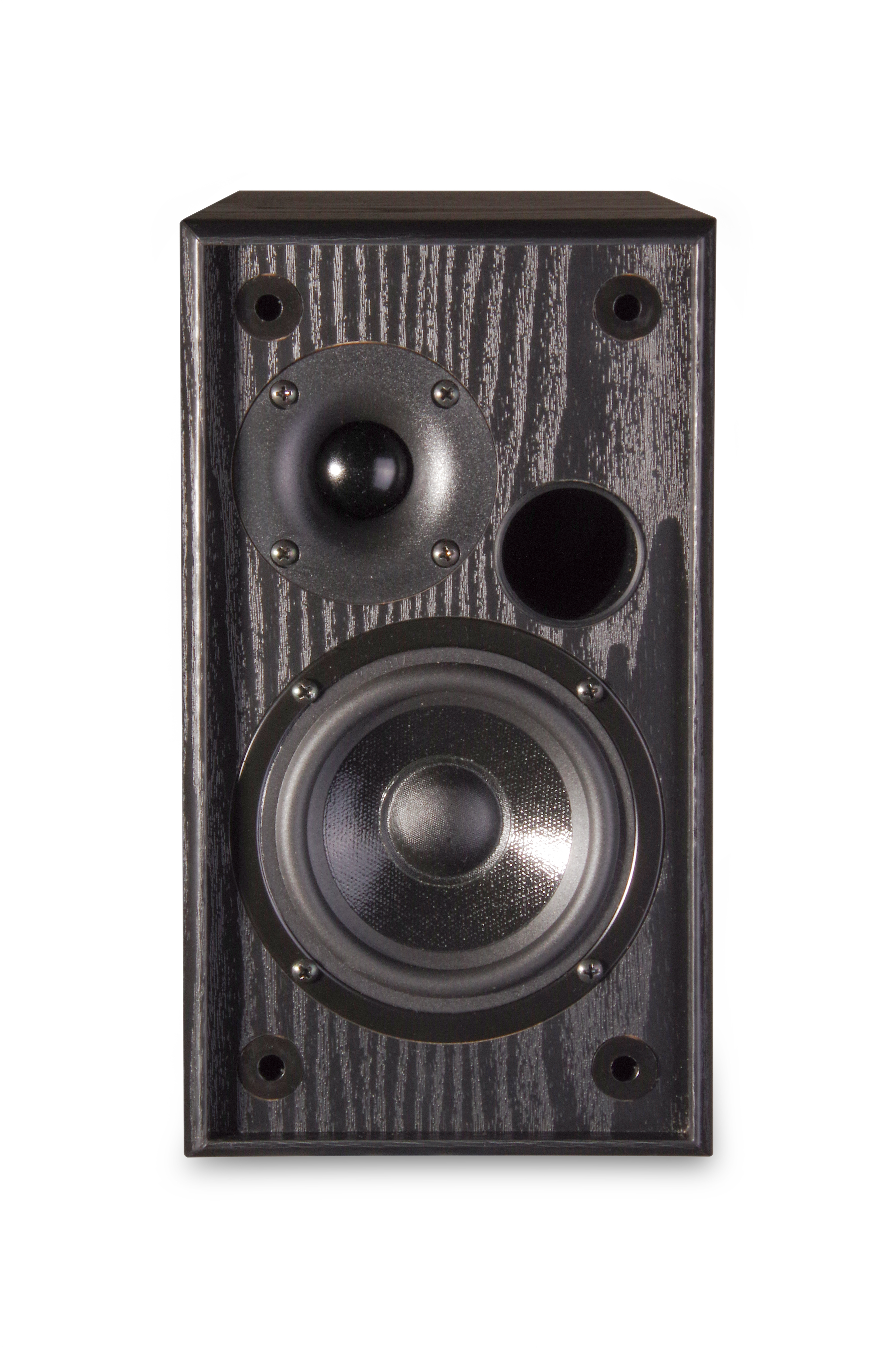

AQ  TANGO 92 IT                                                          Listino ufficiale  €.   210,00

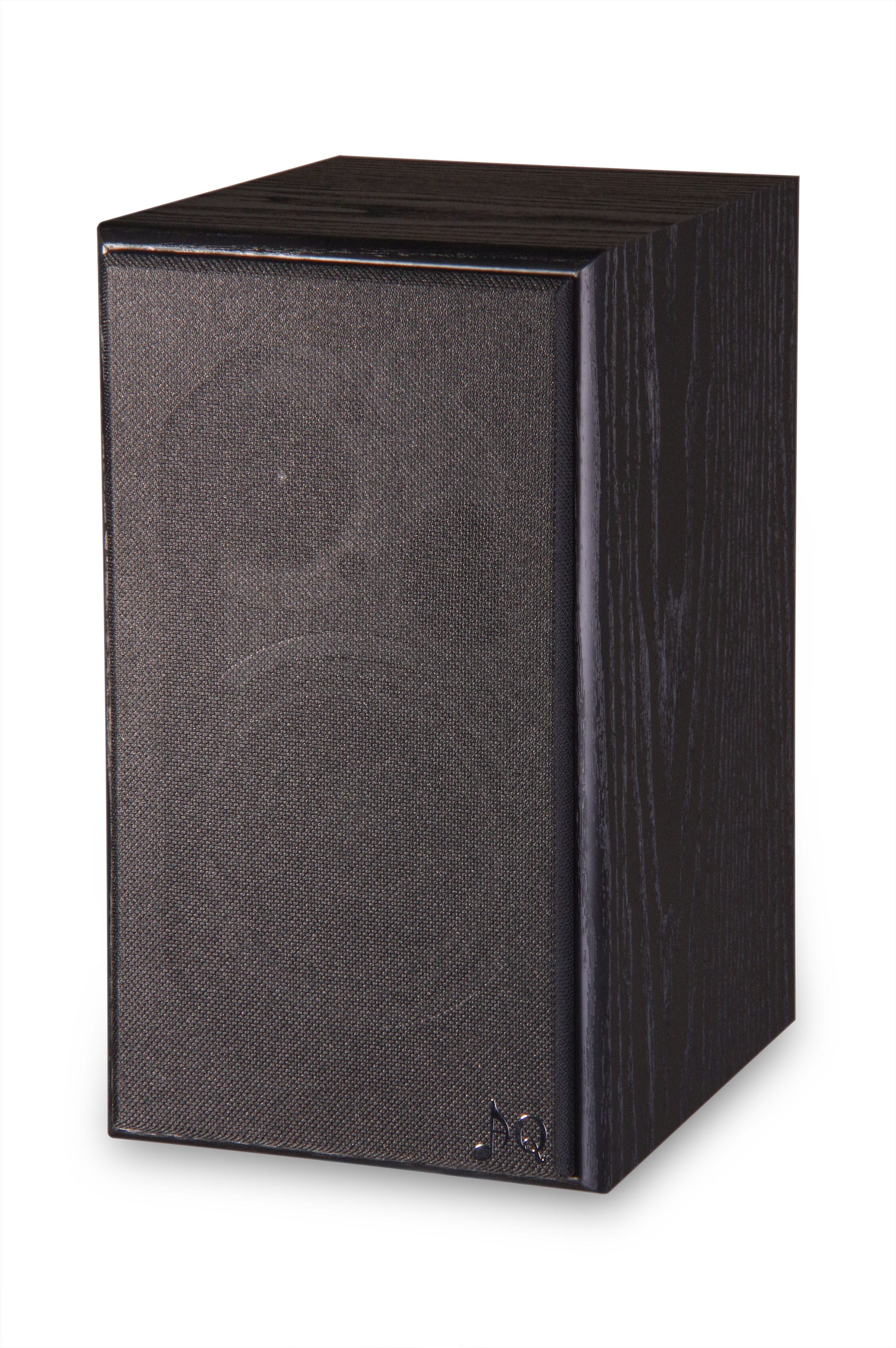

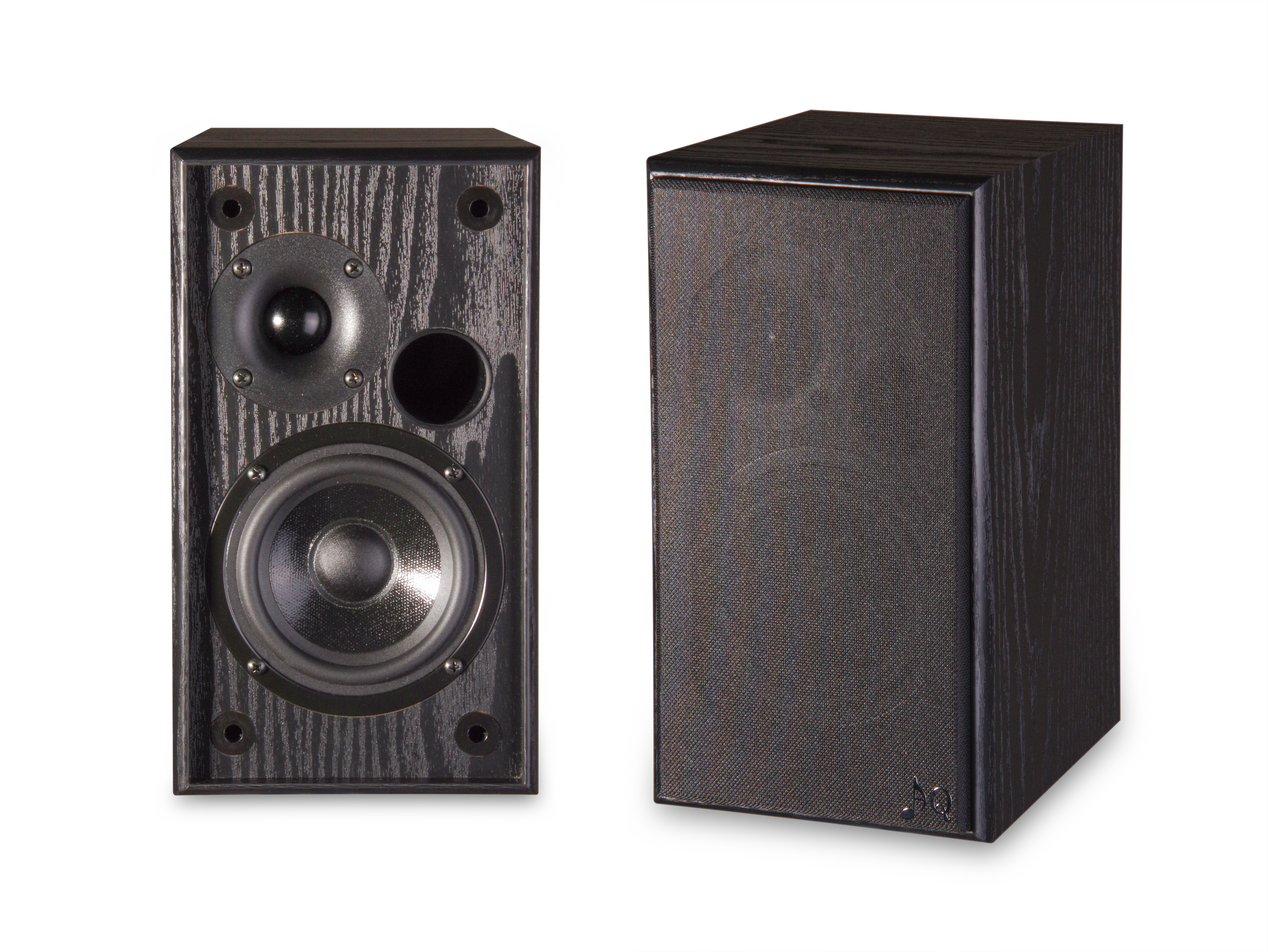

Altoparlante compatto a due vie con design con porta  reflex  posteriore. Presenta bassi medi da 4 ½ "di alta qualità con cono in carta patinata; telaio in acciaio Il preciso tweeter       Vifa con magnete al neodimio  con  calotta seta         e  raffreddamento a ferrofluido AQ Tango 92 è progettato per installazioni in cui le restrizioni di spazio non consentono un alloggiamento più grande ma è necessaria una riproduzione ad alta fedeltà. Per una gamma completa deliziosa, si consiglia il subwoofer AQ Tango 94 del sistema. Tango 92 è in grado di svolgere le funzioni surround nell'home theater e può essere montato a parete utilizzando le staffe da parete.SPECIFICHE  Sistema: 2 vie, bass-reflex, con attacco frontaleTweeter: 1 x 1 "cupola in seta Vifa Mid-Woofer: 1 cono di carta da 4,5 " Impedenza: 8 Ohm Gestione della potenza: picco 40W / 100W Sensibilità: 85B / 1W / 1m Risposta in frequenza: 75Hz - 20kHz entro 10 dB Pendenza del crossover: 6,6 dB / oct Cablaggio interno: cablaggio punto-punto Dimensioni (lxhxp): 140 x 250 x 190 mm Peso: 2,7 kg Finiture: frassino nero
Compact two-way loudspeaker with rear ported design. Features high quality 4 ½” mid-bass with coated paper cone; steel frame and precise ¾” ferrofluid cooled tweeter. Tango 82 is designed for installations where space restrictions do not allow bigger enclosure yet high fidelity reproduction is required. For delightful full range, system AQ Tango 84 subwoofer is recommended.Tango 82 can fulfill surround duties in home theater and can be wall mounted using wall bracket BT1. Finish textured black ash laminate.2-way small shelf loudspeakers, 8ohm, power 40/100W, 4" polypropylene bass driver, full sound by small volume, suitable for smaller space as stereo, surround home theatre. SPECIFICATIONS System: 2-way, bass-reflex, front-portedTweeter: 1 x 1” Vifa silk dome Mid-Woofer: 1 x 4.5” paper cone Impedance: 8 Ohm Power Handling: 40W / 100W peak Sensitivity: 85B / 1W / 1m Frequency Response: 75Hz - 20kHz within 10dB Crossover Slope: 6.6 dB/oct Internal Cabling: point-to-point wiring Dimensions (wxhxd): 140 x 250 x 190mm Weight: 2.7kg Finishes: Black Ash

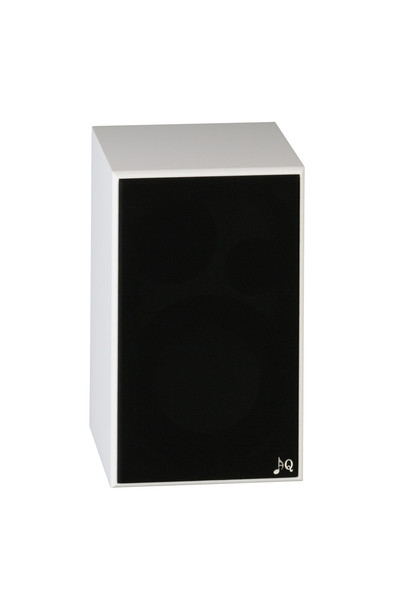

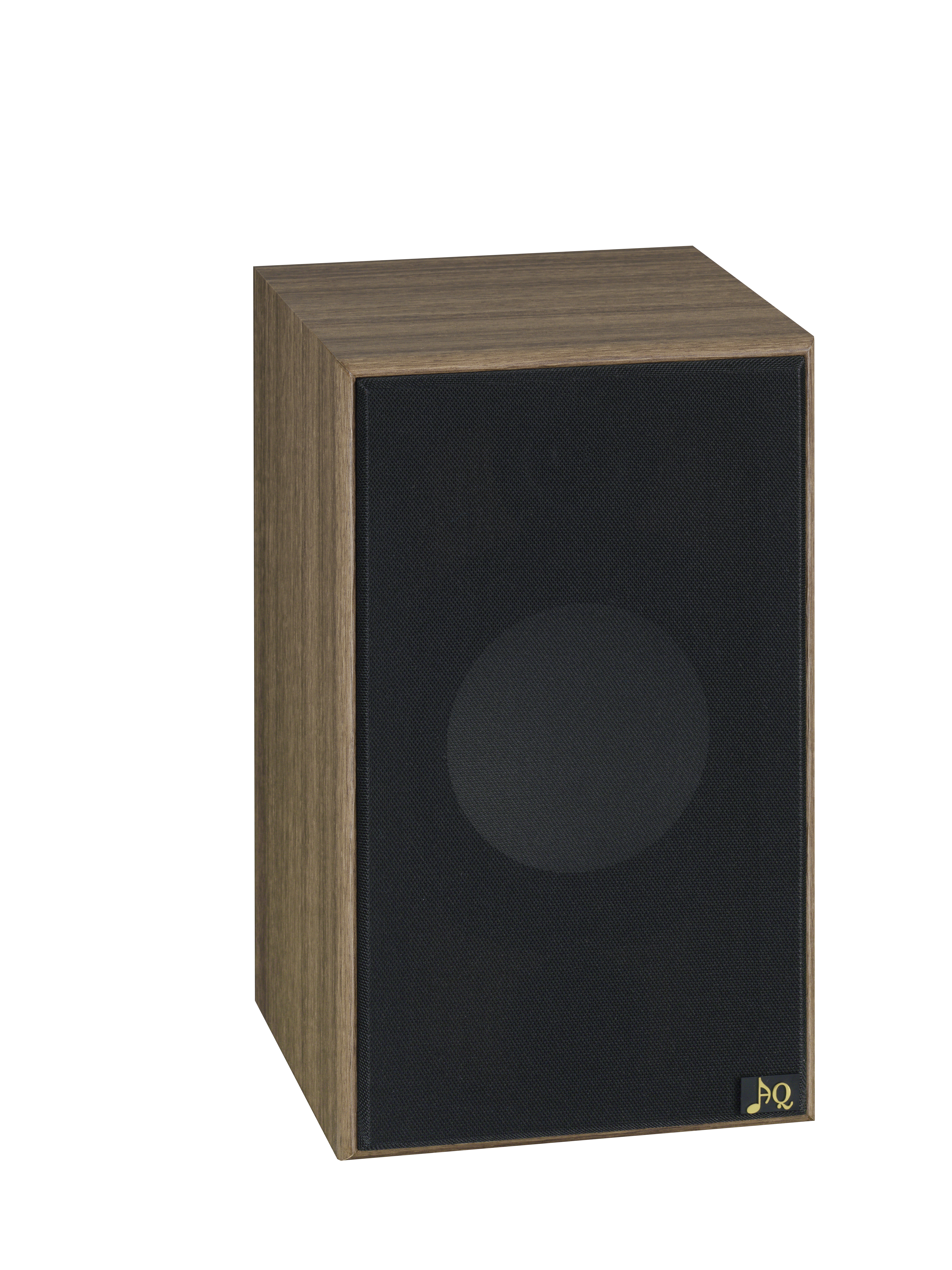

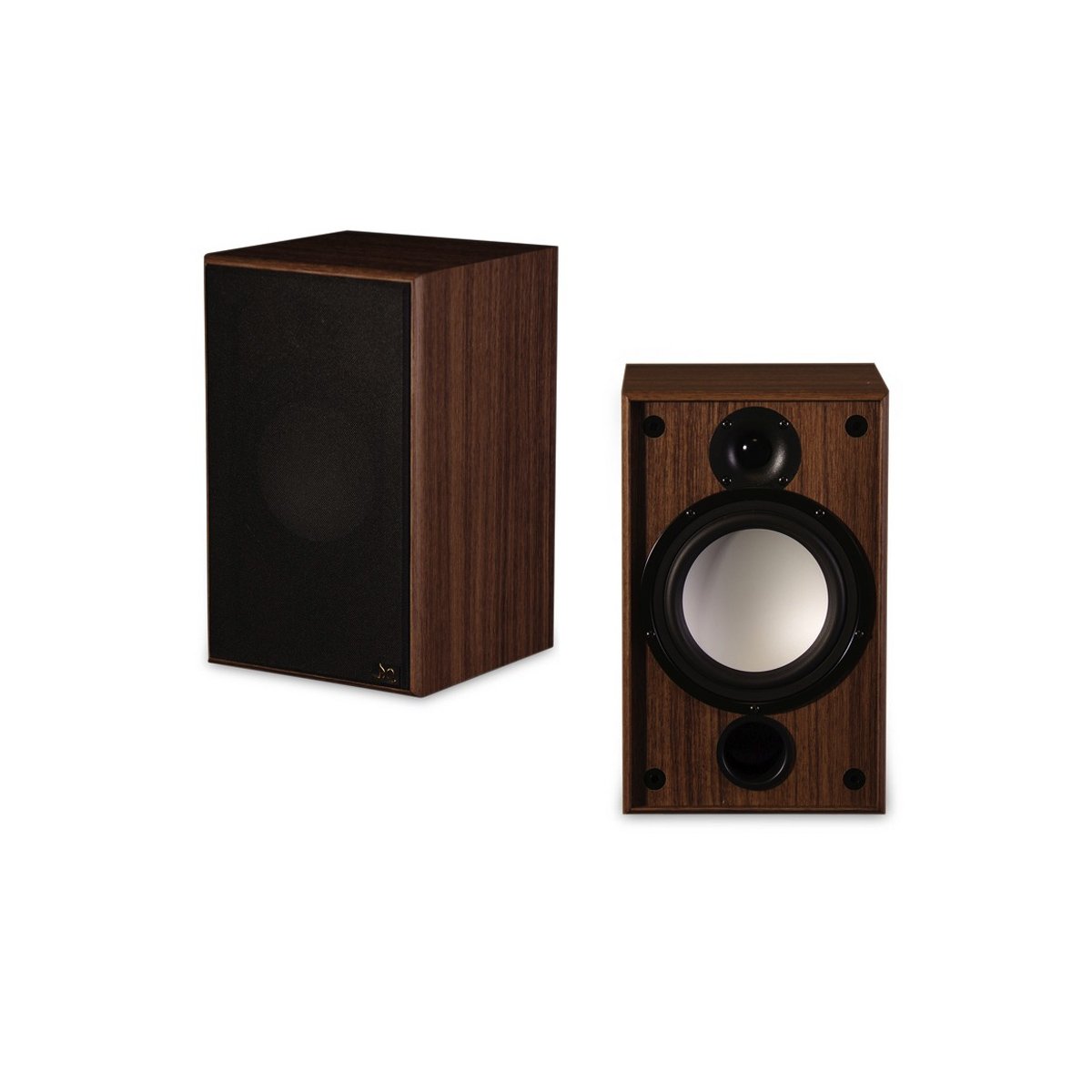

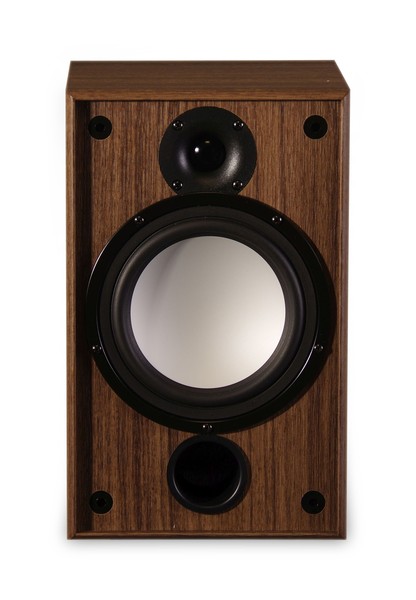

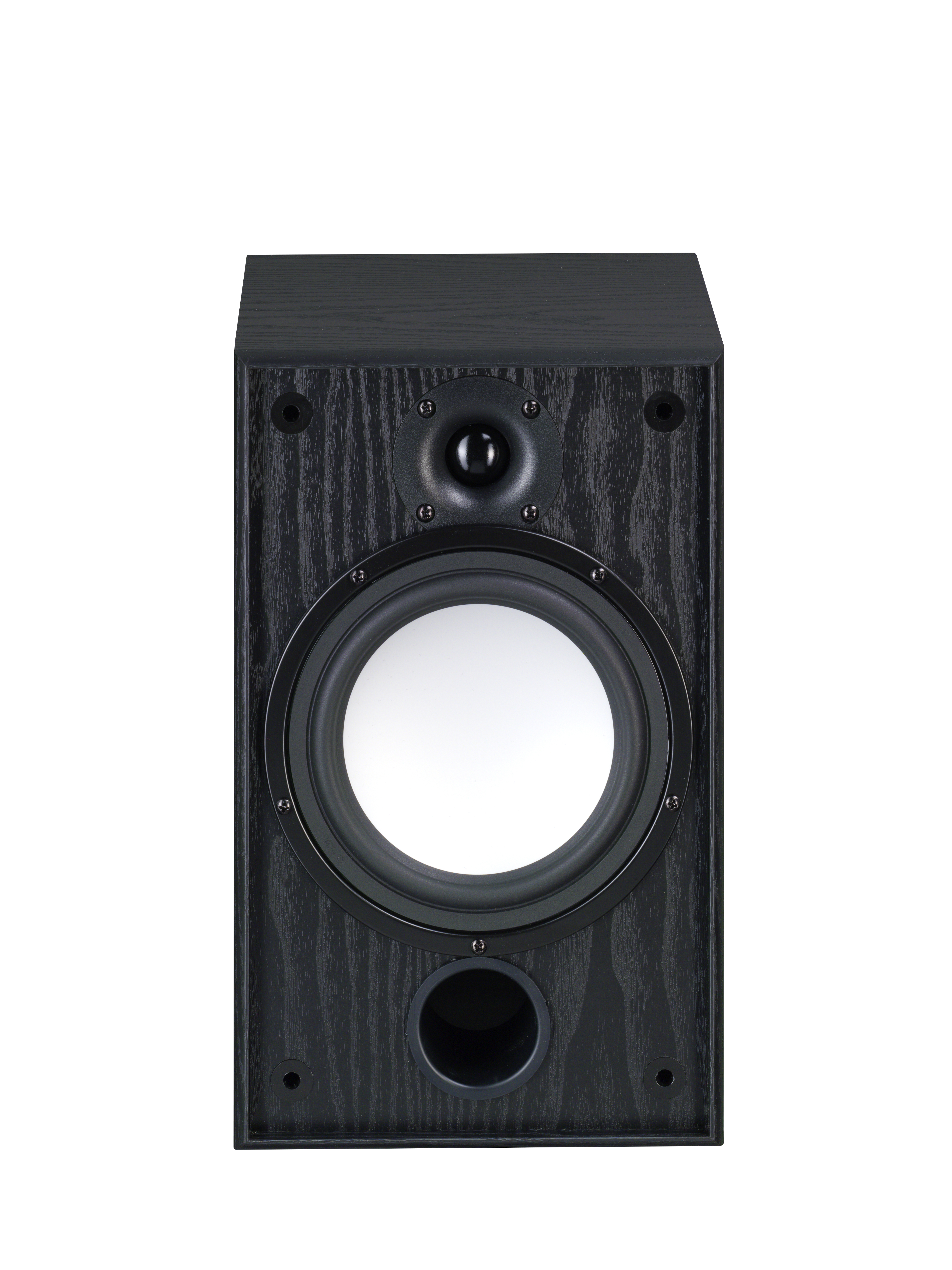

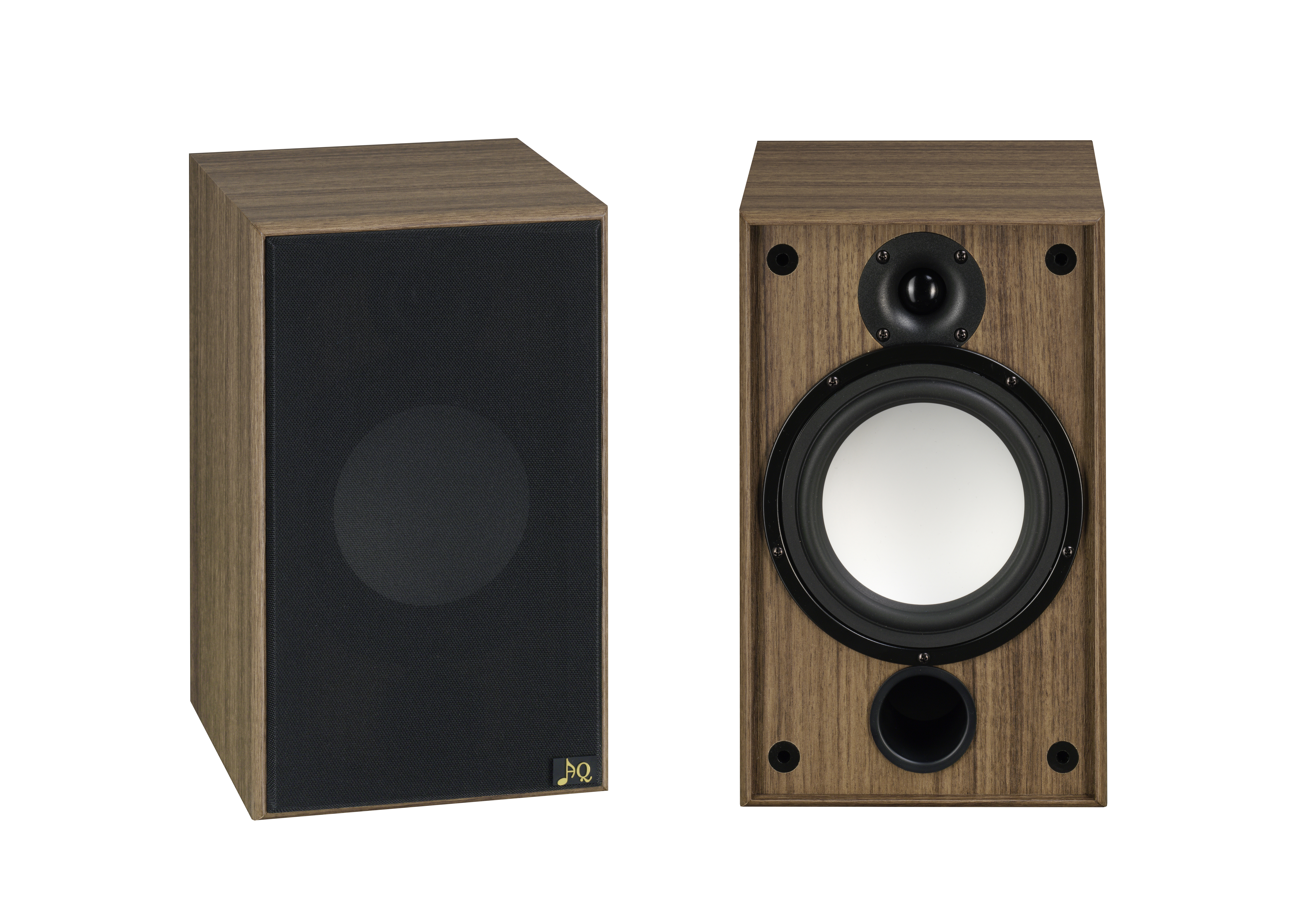

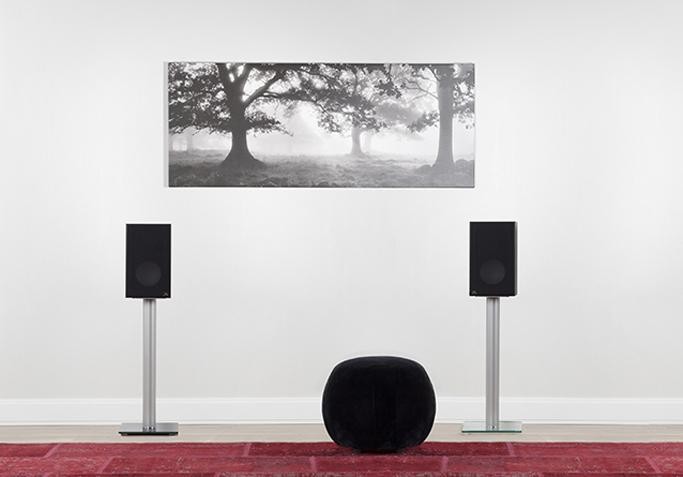

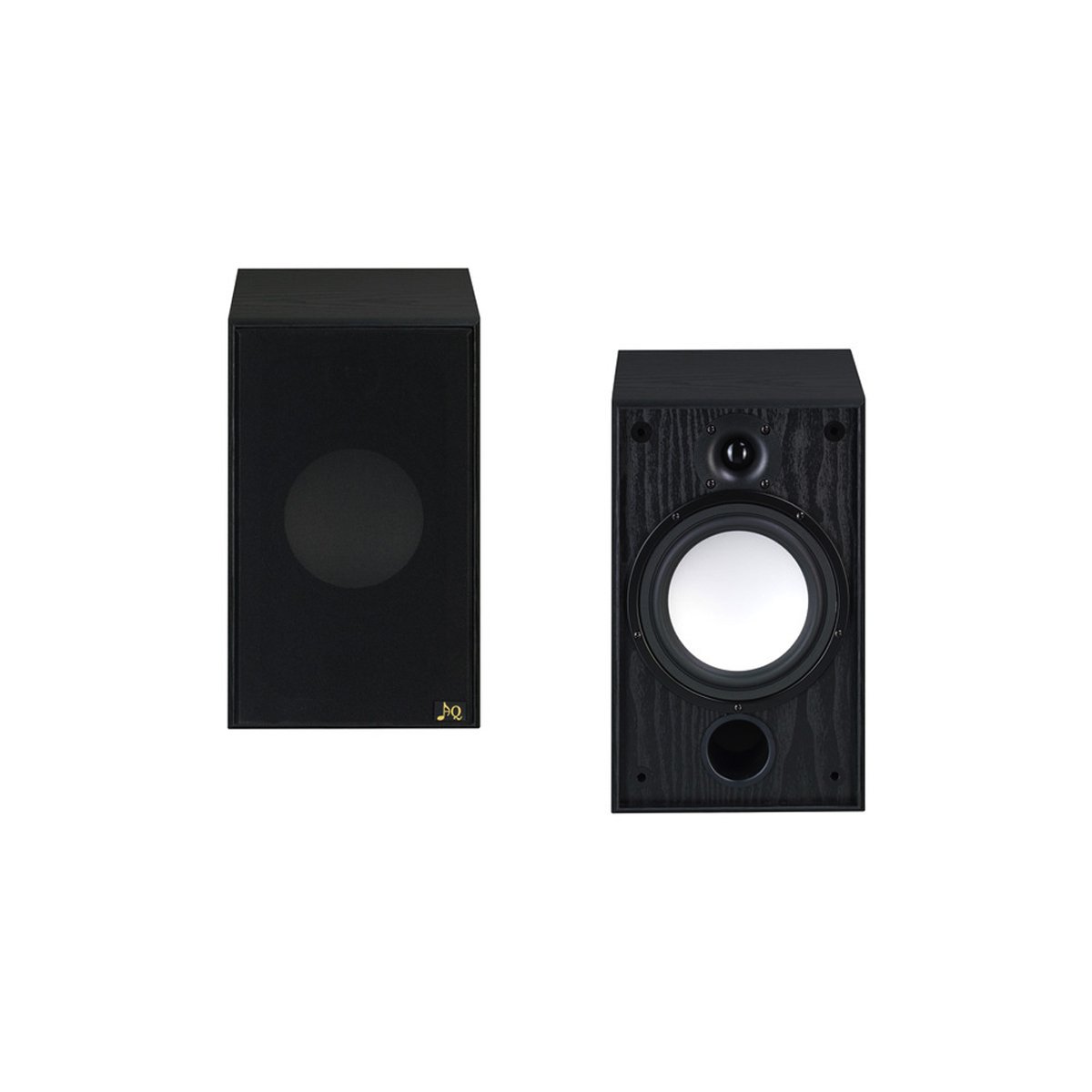

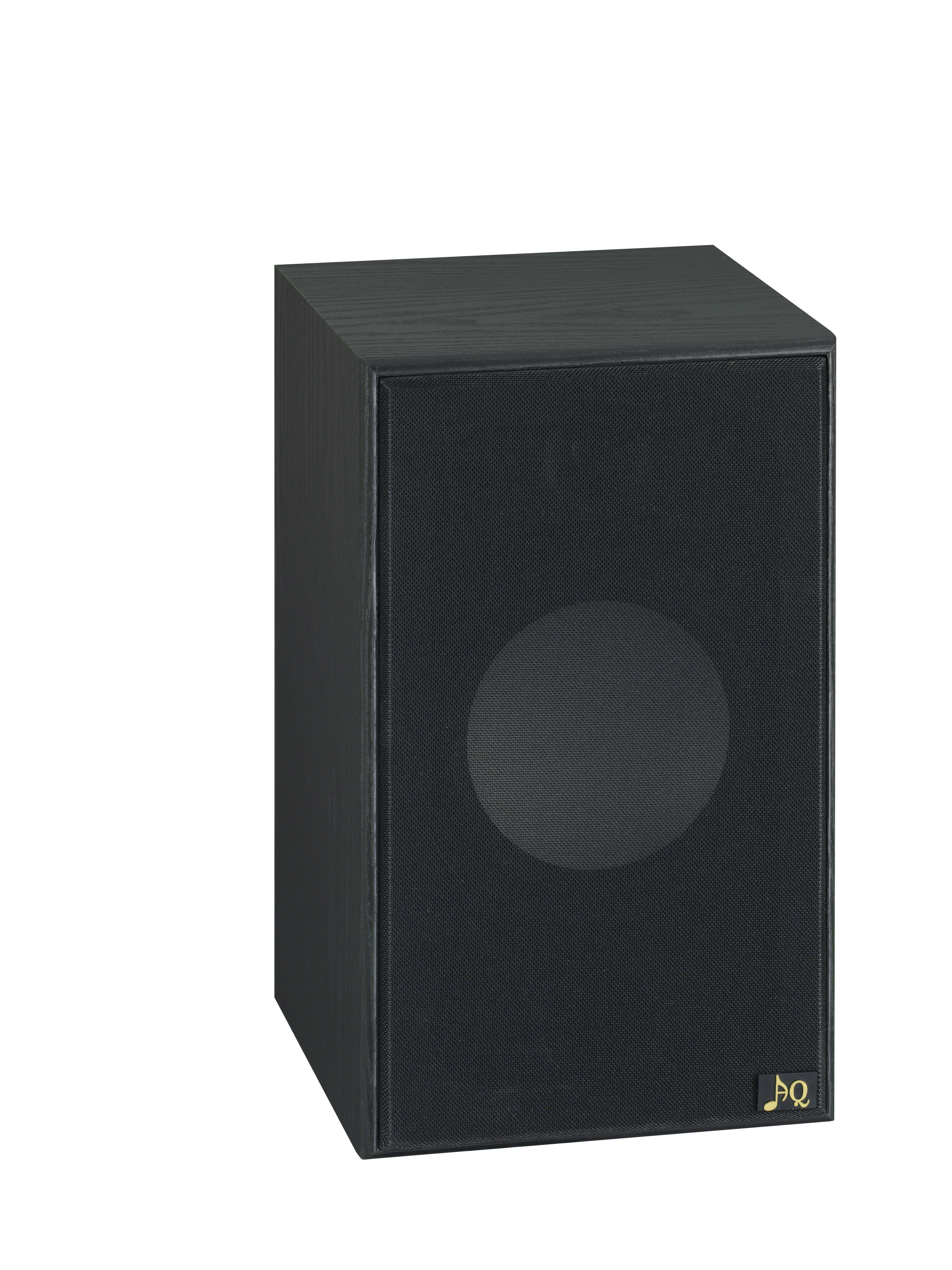

AQ  TANGO 93 IT                                                            Listino ufficiale  €.   260,00

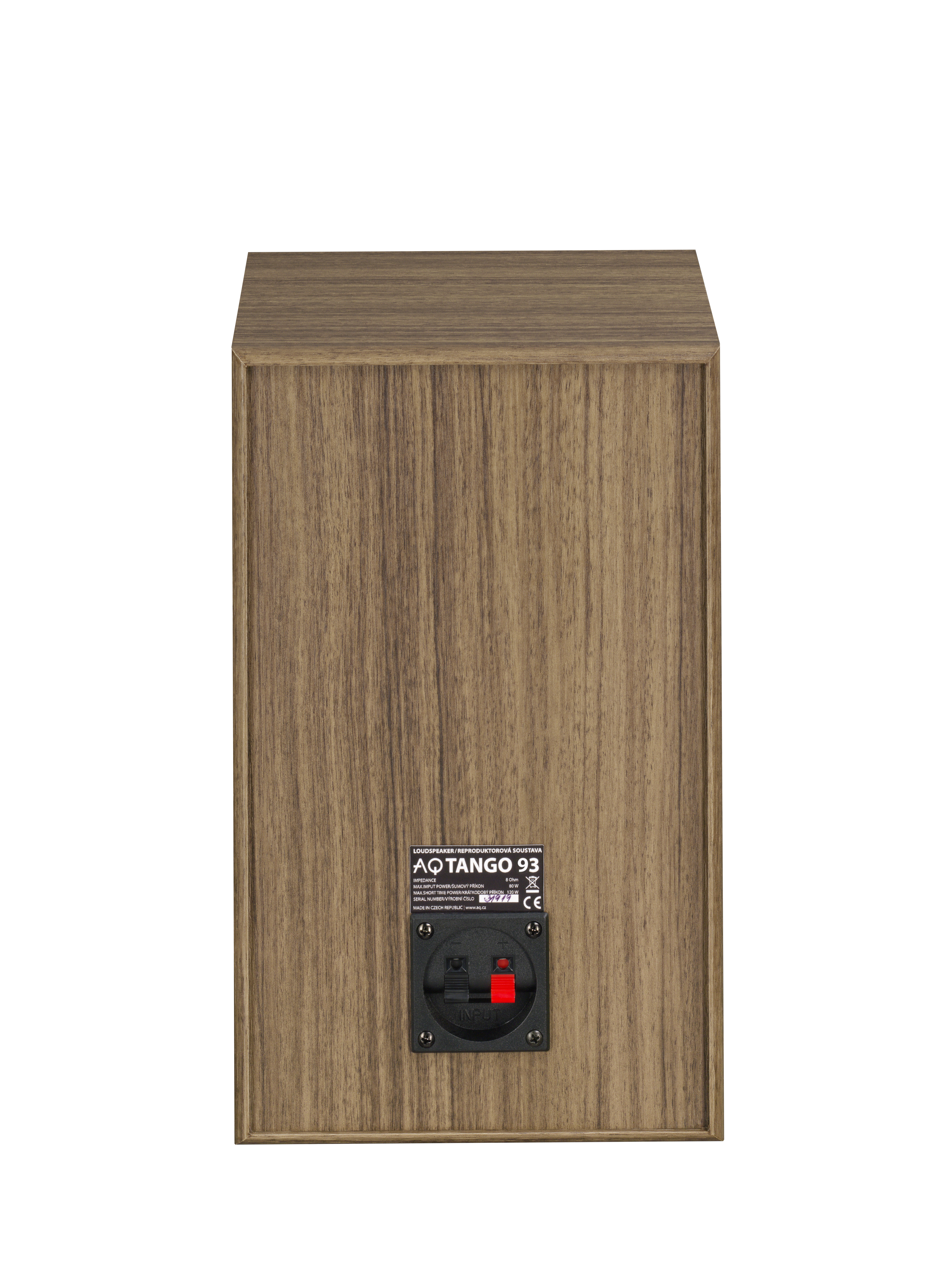

Altoparlante compatto a due vie con utilizzo universale e   massima  qualita' del   suono. Il diffusore  ha una porta  reflex  frontale e può essere installato vicino alla parete o può essere montato direttamente a parete.  I robusti pannelli in MDF sono lavorati con precisione e incollati per formare un involucro rigido  e resistente, rifinito con un attraente laminato naturale in legno. Il preciso tweeter       Vifa con magnete al neodimio  con  calotta seta         e  raffreddamento a ferrofluido  .Bassreflex sul pannello frontale (l'altoparlante può essere montato direttamente a parete), il  driver per il  basso   e'  da 6" con cono in alluminio leggero  e'  tecnologicamente  avanzato   e  robusto con telaio in acciaio. Il crossover a 6/6 dB / ott presenta bobine con nucleo ad aria a carica manuale con rame OFC puro 1mm2.  Tutte le connessioni interne sono saldate termicamente.Sistema: 2 vie, bass-reflex, con attacco frontaleTweeter: 1 x 1 "cupola in seta Vifa Mid-Woofer: cono in alluminio da 1 x 6 " Impedenza: 8 Ohm Gestione della potenza: picco 80W / 120W Sensibilità: 89B / 1W / 1m Risposta in frequenza: 55Hz - 20kHz entro 8dB Pendenza del crossover: 6,6 dB / oct Cablaggio interno: cablaggio punto-punto Dimensioni (lxhxp): 200 x 325 x 217 mm Peso: 5 kg Finiture: frassino nero, noce

Compact two-way loudspeaker with universal usage and maximum sound. Loudspeaker is front-ported and can be installed close to the wall or can be wall mounted. Tango 83 can handle smaller lecture rooms, offices, public spaces, dorms and works well in a secondary bedroom system or kids room.Strong MDF panels are precisely machined and glued to form a rigid, non-resonant enclosure finished in attractive, natural wood texture laminate. Rigid baffle houses precise ¾” ferrofluid cooled tweeter and 6” mid-bass driver with advanced strong, lightweight aluminum cone and robust steel frame. 6/6 dB/oct crossover features hand wound air core coils with 1mm2 pure OFC copper. This eliminates oversaturation typical when higher power requirements are demanded. All internal connections are thermally soldered.Finish textured black ash, beech, white laminate.2-way shelf loudspeakers, 8ohm, power 60/120W, 16cm aluminum bass driver, outstanding price performance ratio, universal use, front for stereo, restaurants, schools, authorities, new aslo in white surface finish.SPECIFICATIONS System: 2-way, bass-reflex, front-ported Tweeter: 1 x 1” Vifa silk dome Mid-Woofer: 1 x 6” aluminium cone Impedance: 8 Ohm Power Handling: 80W / 120W peak Sensitivity: 89B / 1W / 1m Frequency Response: 55Hz - 20kHz within 8dB Crossover Slope: 6.6 dB/oct Internal Cabling: point-to-point wiring Dimensions (wxhxd): 200 x 325 x 217mm Weight: 5kg Finishes: Black Ash, Walnut.

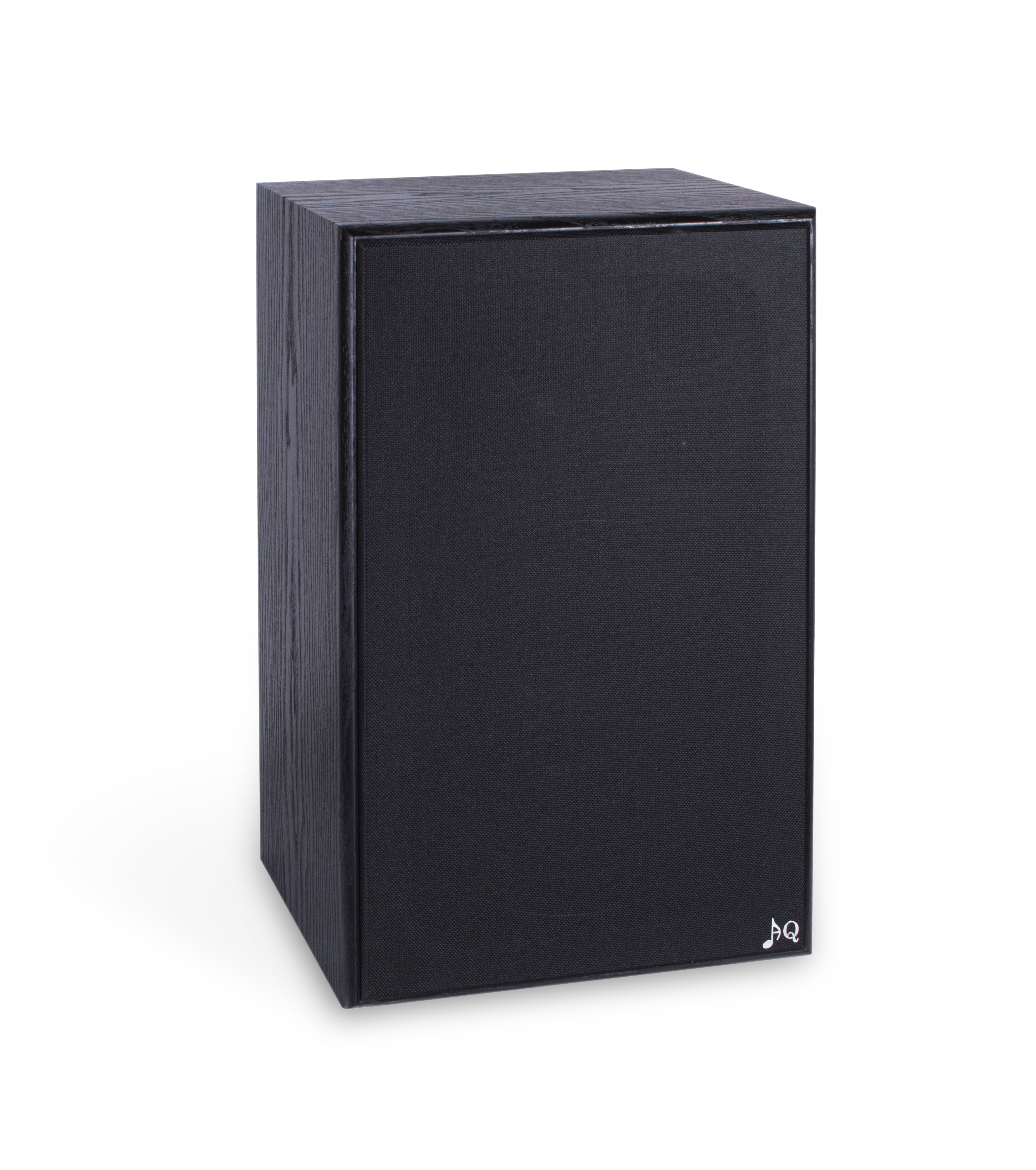

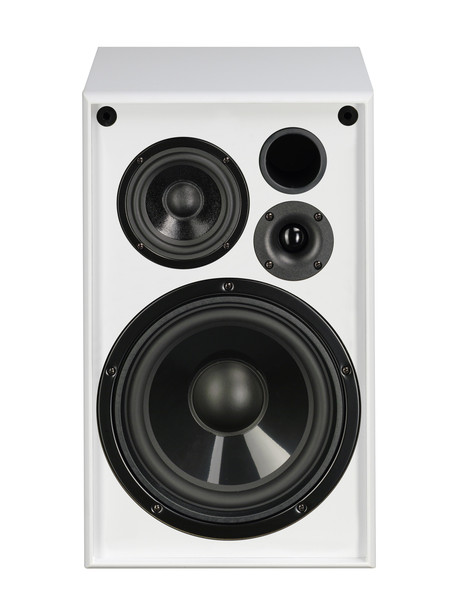

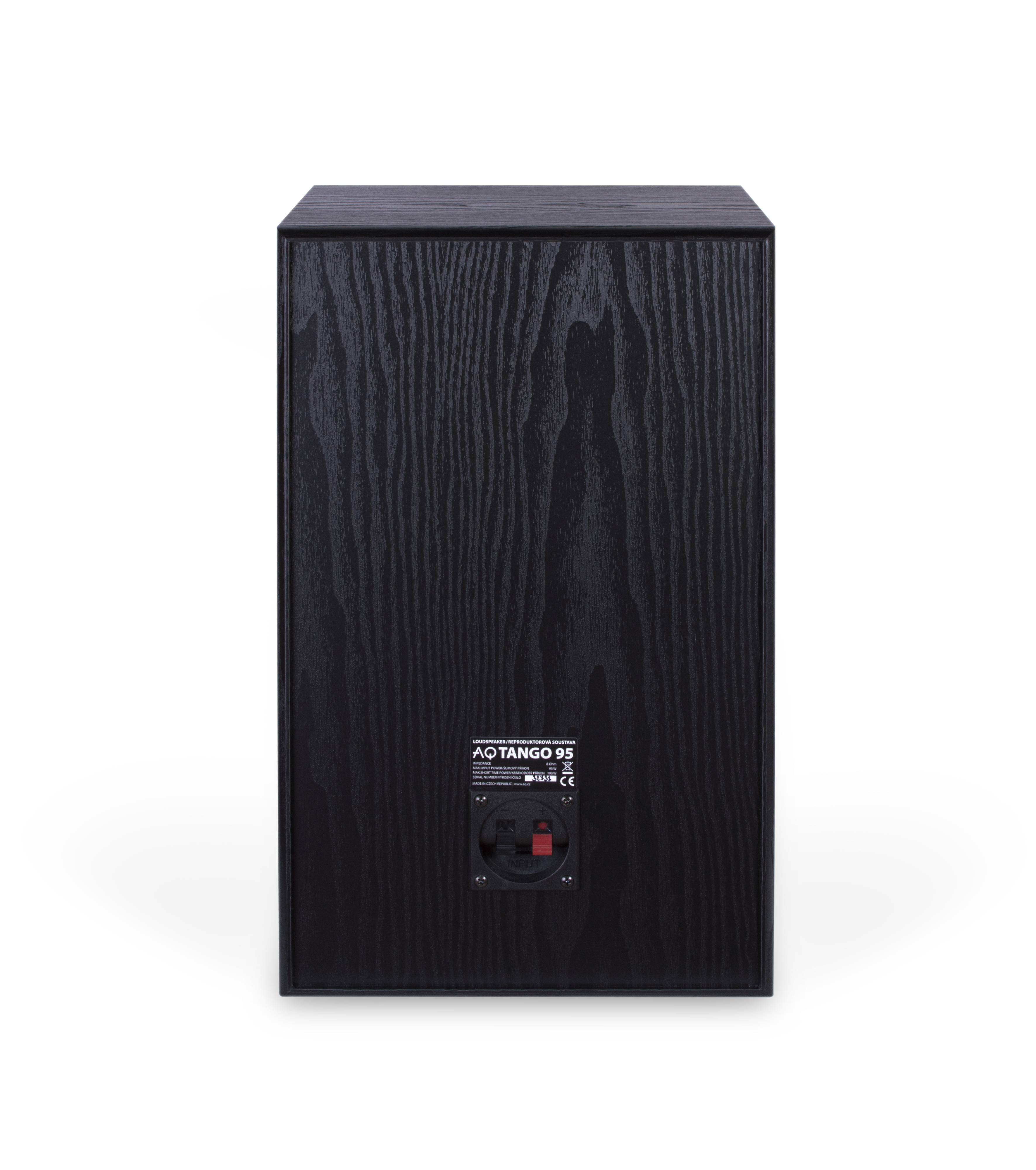

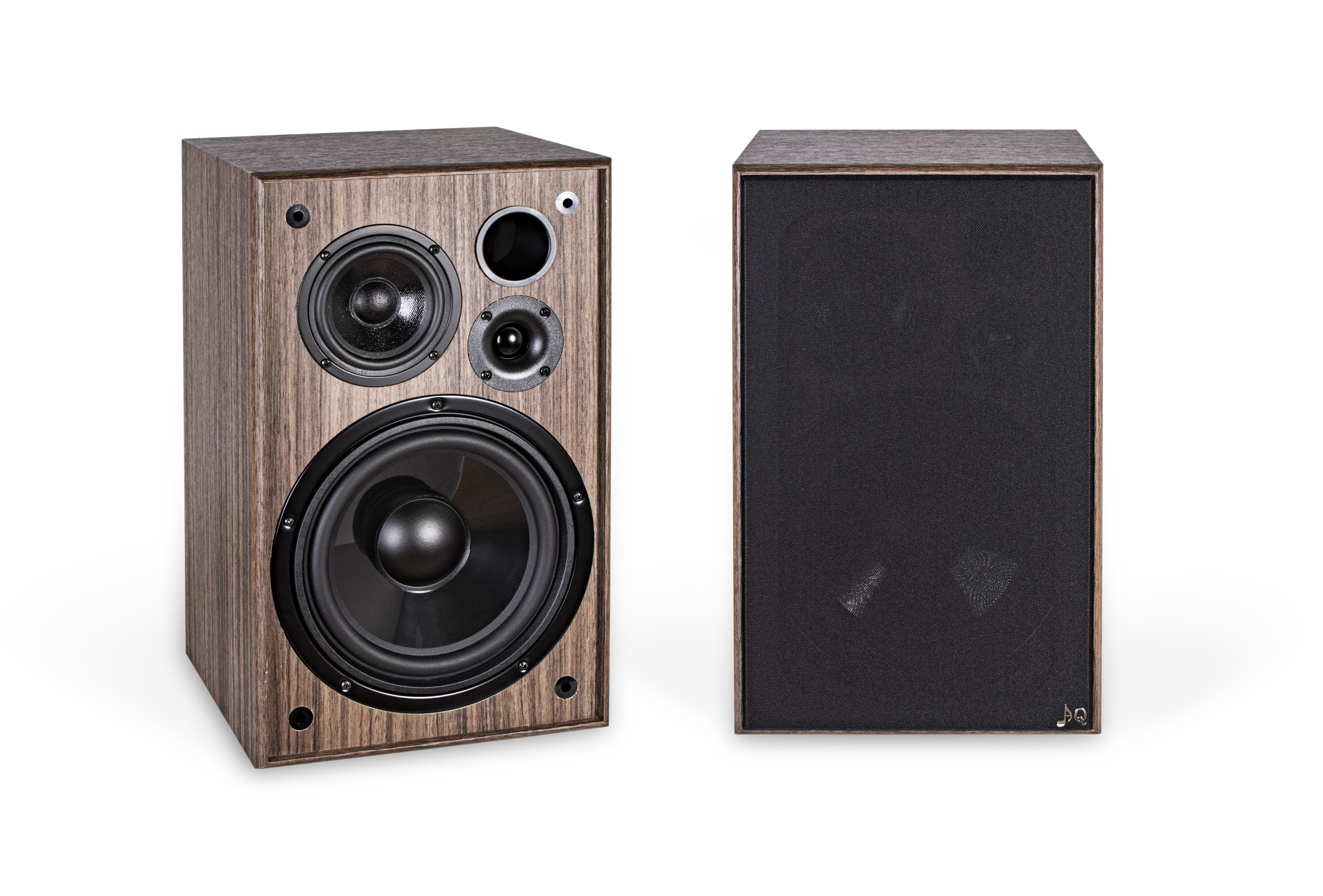

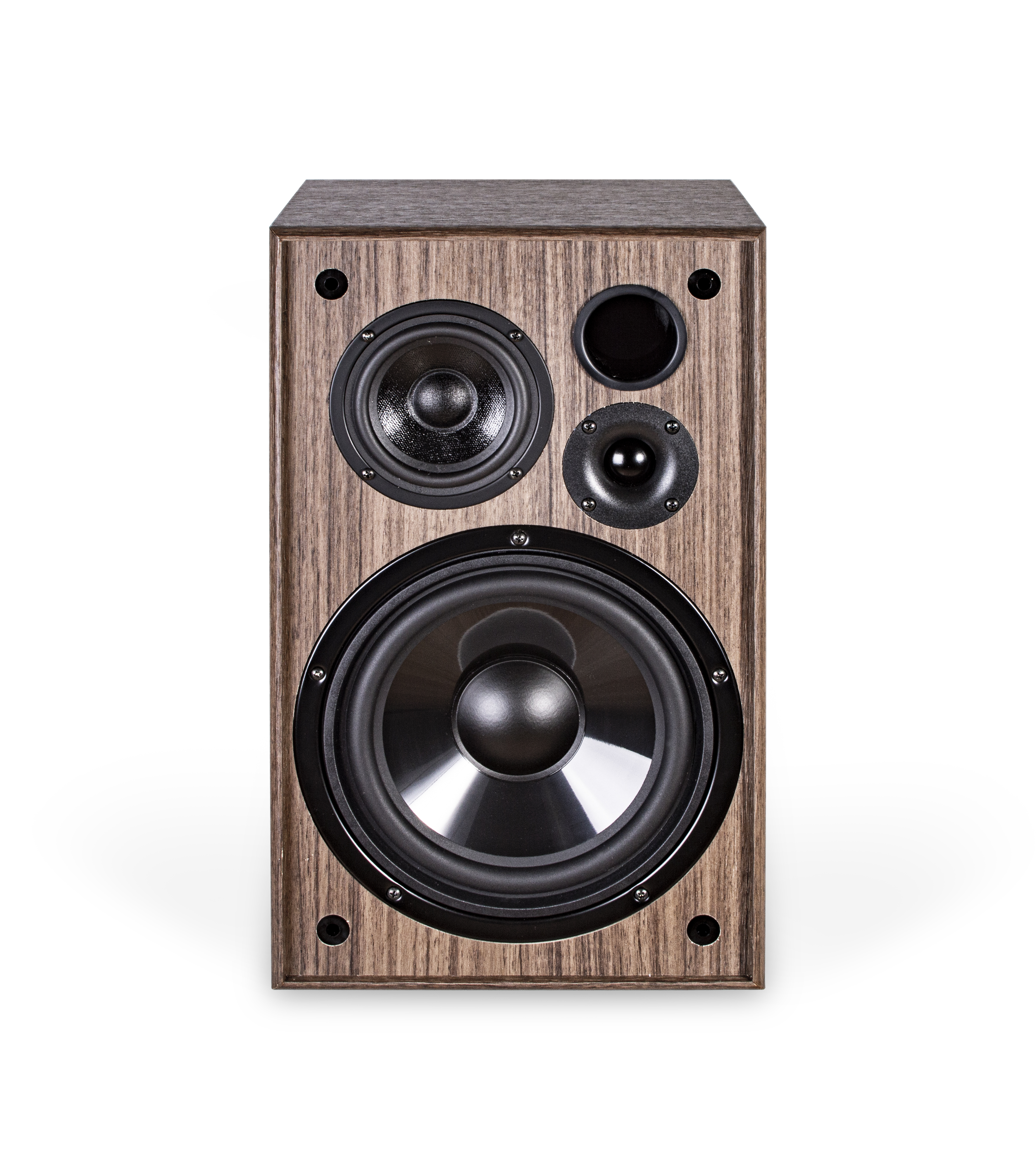

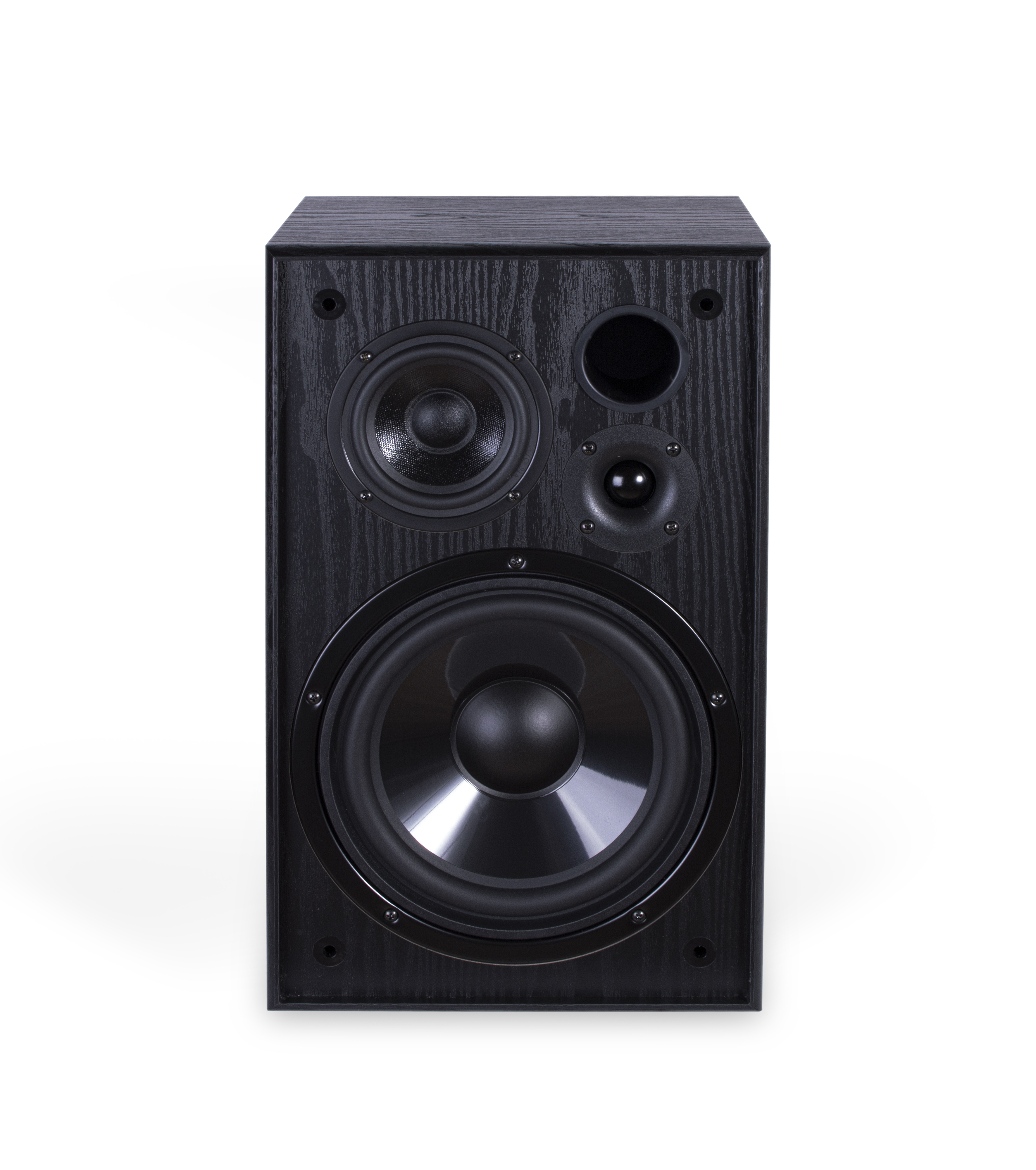

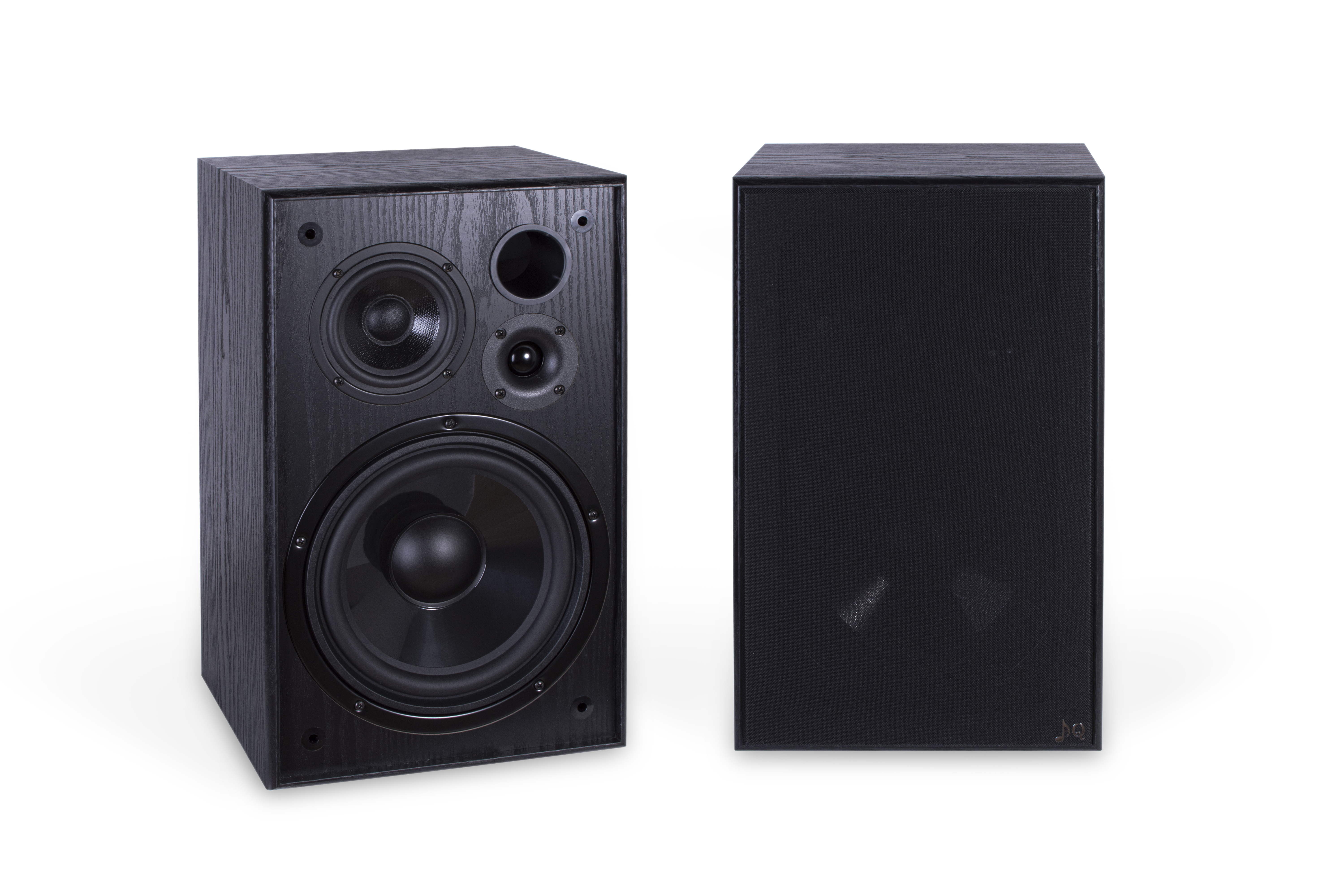

AQ  TANGO 95 IT                                                             Listino ufficiale  €.   390,00

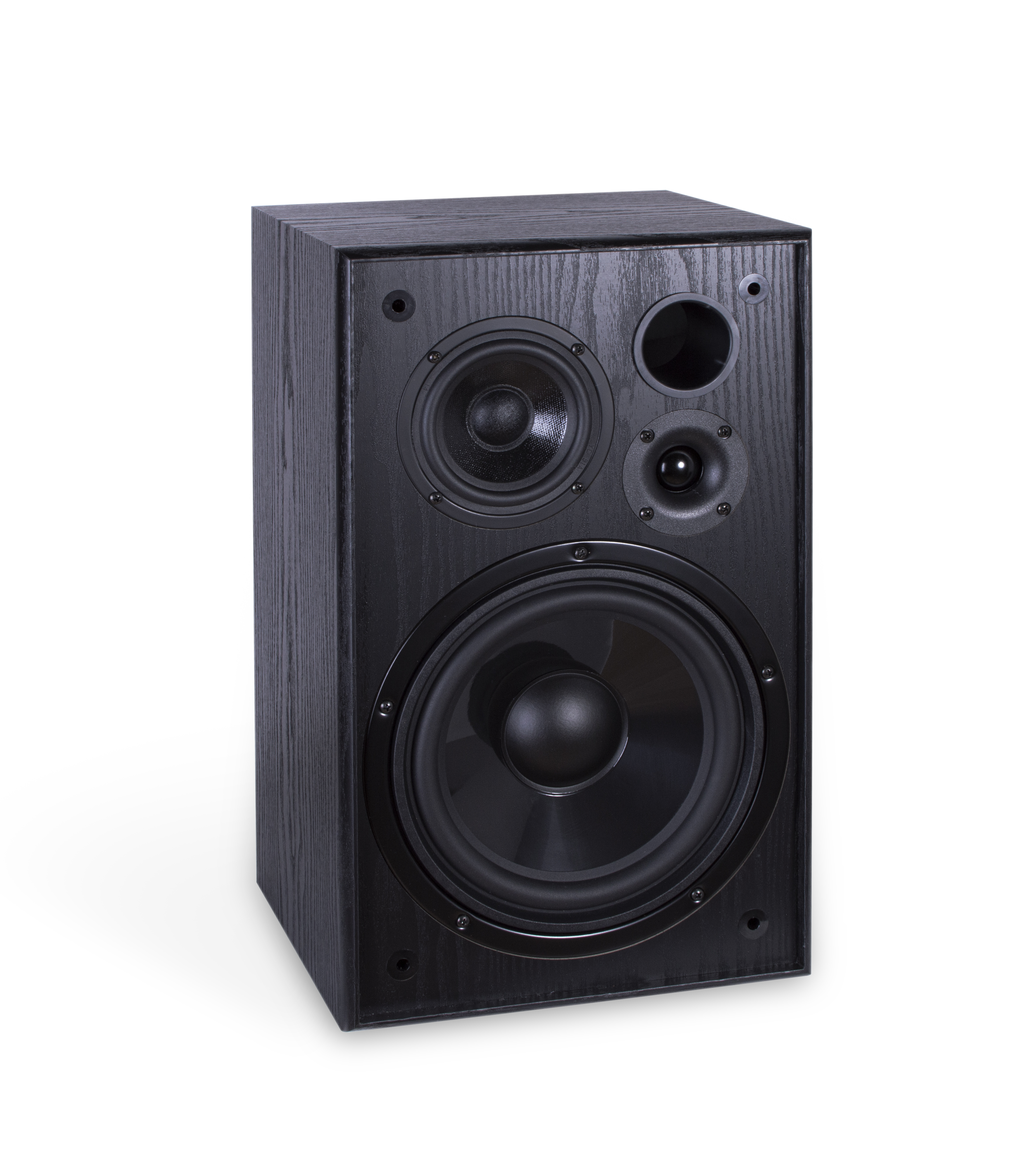

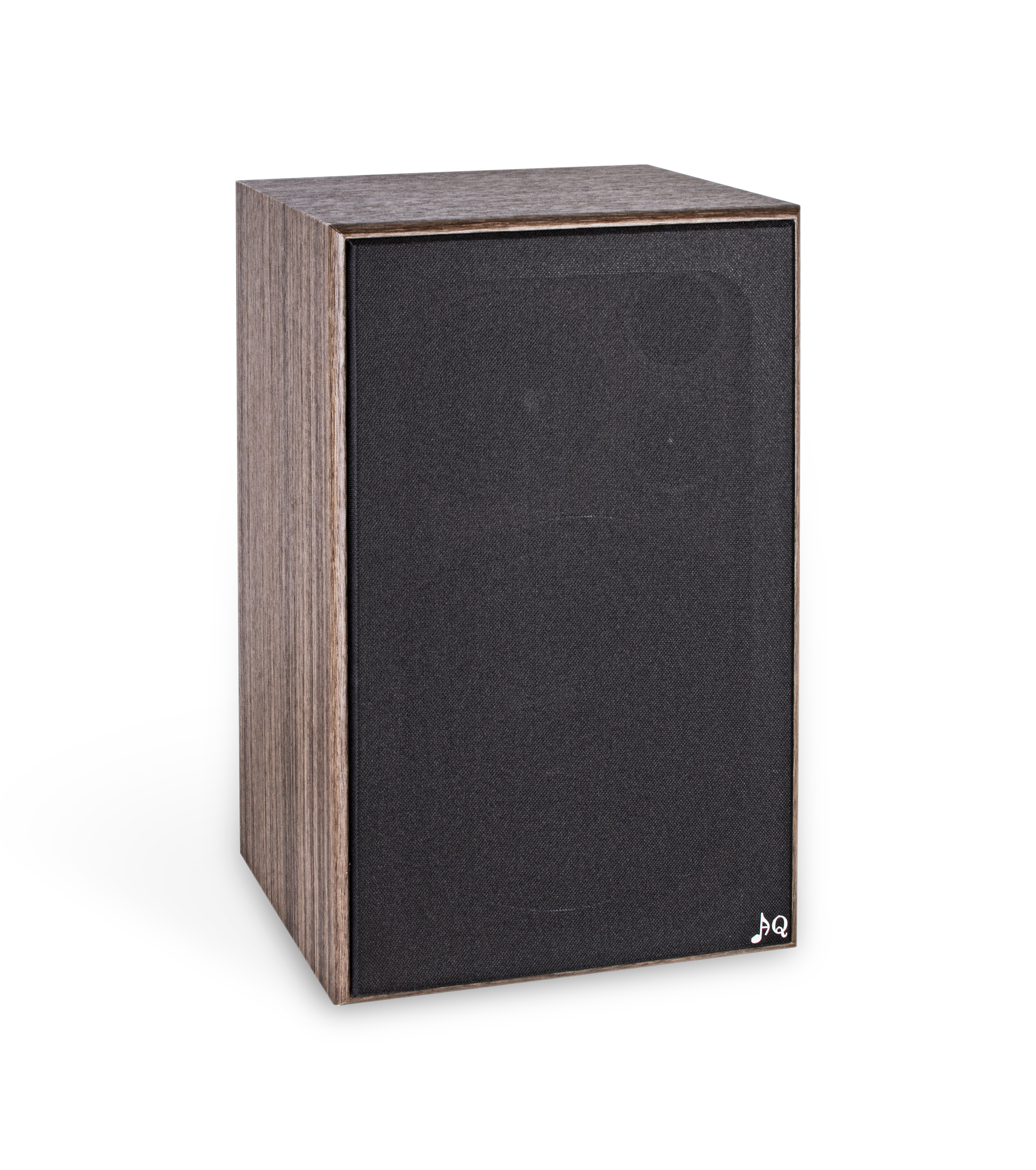

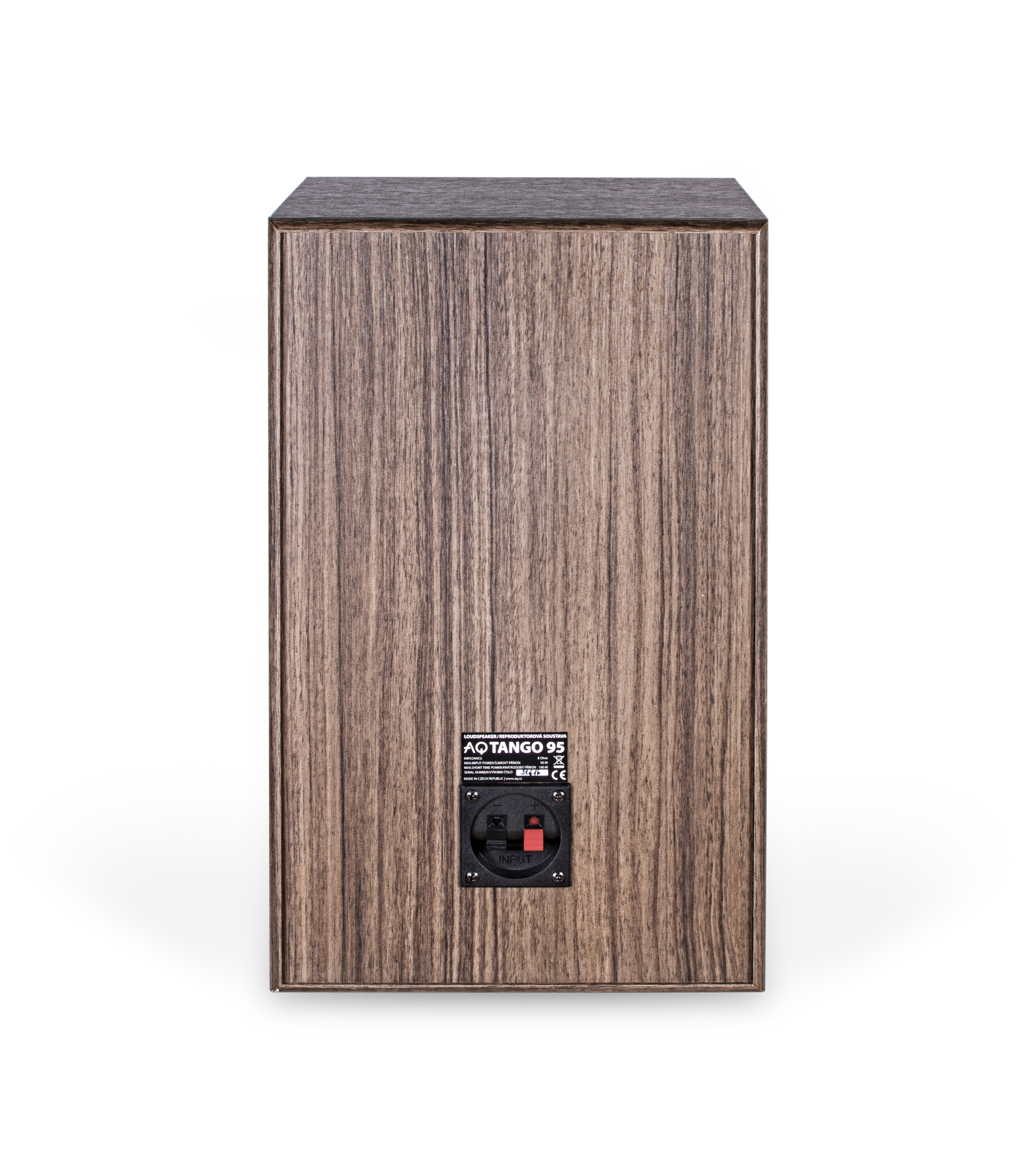

Tango 95 l'altoparlante a tre vie unico con incredibile capacità può essere installato praticamente in qualsiasi spazio ,potente e preciso.  Il cabinet  in MDF ospita un bass driver da 8 "in polipropilene robusto e resistente con magnete e  telaio  massico  Il driver Midrange presenta un cono di carta trattato che assicura una voce coerente e trasparente. Il preciso tweeter  Vifa con magnete al neodimio  con  calotta seta e raffreddamento a ferrofluido completa il trio degli altoparlanti. Il crossover ottimizzato è punto a punto collegato ai driver con rame OFC puro da 1 mm2, garantendo la longevità degli altoparlanti. Bassreflex sul pannello frontale (l'altoparlante può essere montato direttamente a parete), Il Tango 95 funziona   in modo delizioso con qualsiasi tipo di musica e insieme a Tango 91, Tango 92 e un subwoofer Tango 94  puo essere inserito in  sistemi  Home  cinema  con  risultati unici  per   diffusori  di  questa  fascia  Specifiche  Dimensioni : larghezza 254 mm - Altezza 420 mm - Profondita' 260 mm - Peso 8.2 kg - Volume interno 17.5 l - Impedenza 8 ohm - Potenza nominale 95 w - Potenza musicale 190w - Sensibilita' 88/1w/1m - Risposta in frequenza 40 hz-20khz a 8db - Crossower :6.6.6 db/oct - Finiture: nero ,legno naturale,noce ,bianco.

Unique three-way loudspeaker with incredible ability can be installed virtually in any space. Powerful and precise Tango 85 can handle smaller dorms, large living rooms, offices or commercial spaces. It can be installed in hotels, restaurants or conference rooms. Front-ported enclosure can be placed at wall proximity, on a bookshelf or on a stand. MDF enclosure houses robust and resilient 8” polypropylene bass driver with massive magnet and motor. Midrange driver features treated paper cone that assures coherent and transparent vocals. Precise ¾” ferrofluid cooled tweeter rounds out the trio of the drivers. Optimized crossover is point to point connected to the drivers with 1mm2 pure OFC copper, assuring longevity of theloudspeakers.Tango 85 will work delightfully with any kind of music and together with Tango 81, Tango 82 and a subwoofer; Tango 94 will create detailed scenic sound-fields and a thunderous backdrop to the latest action blockbuster. Finish textured black ash, beech, white laminate3-way shelf loudspeakers, 8ohm, powe 95/190W, 20cm polypropylene bass driver, compact size, high capacity, suitable for hard music, restaurants, bars, schools, spaces where is the power and small size needed, new also in white surface finish. Dimensions (wxhxd): 254x420x260mm, weight 8,2 kg.

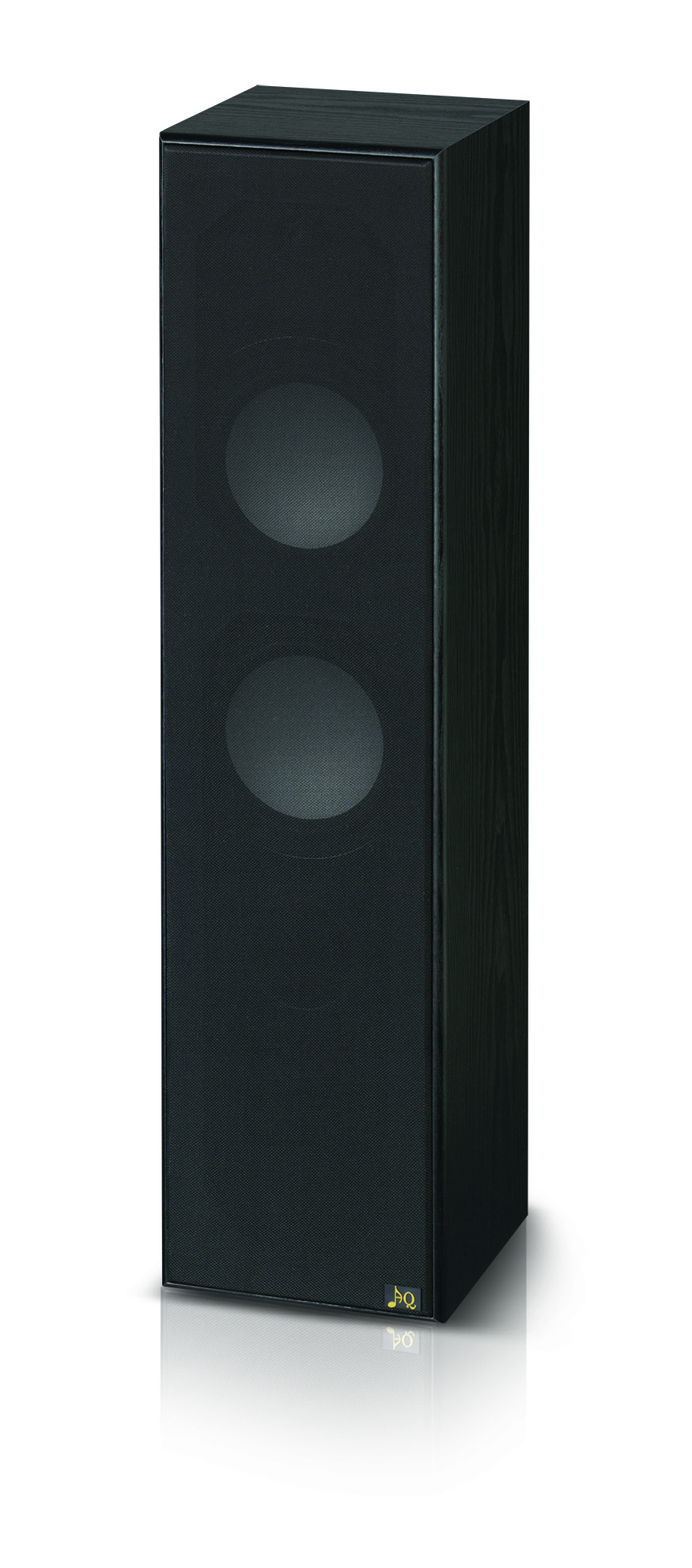

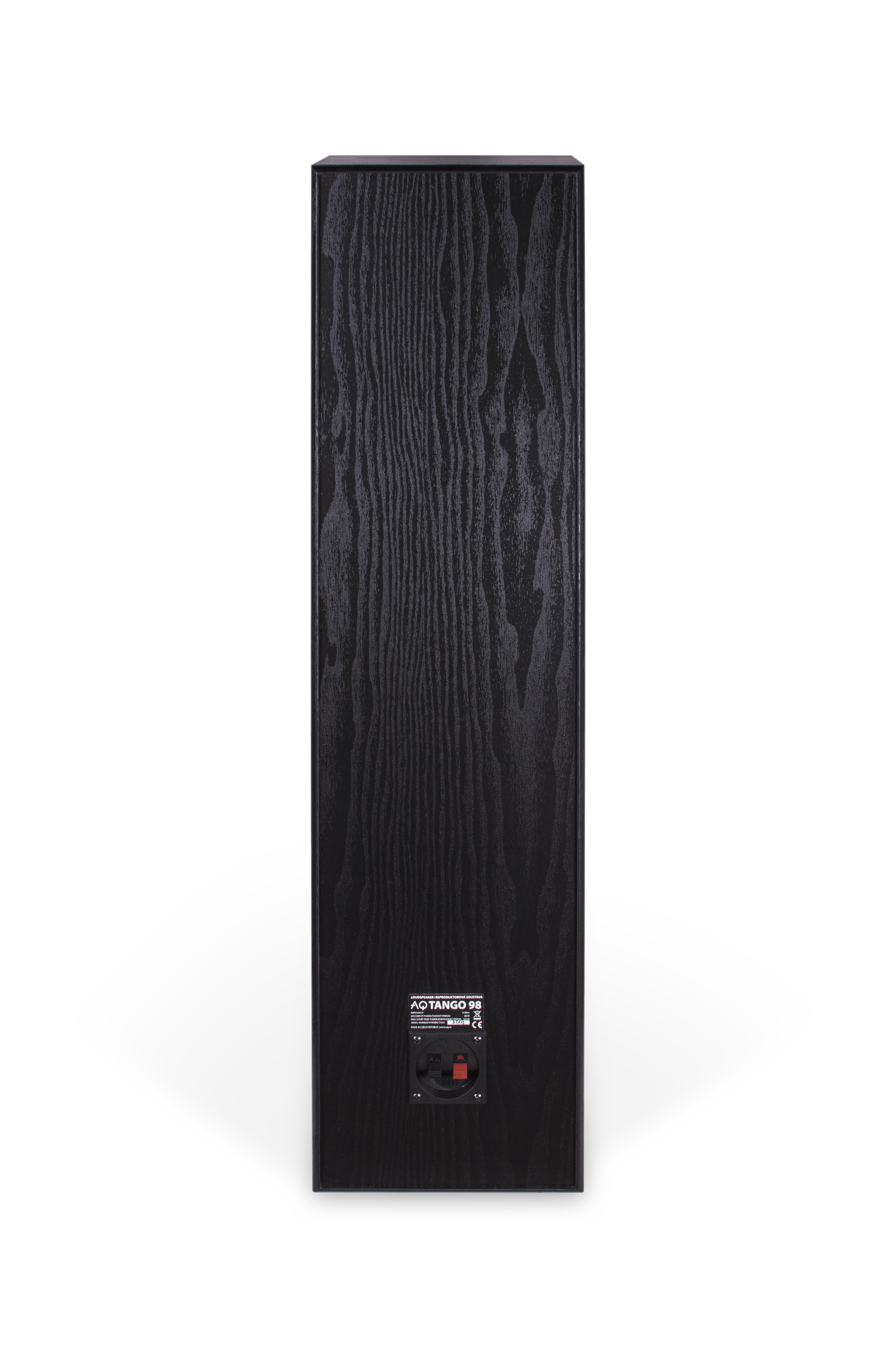

AQ  TANGO 98 IT                                                            Listino ufficiale  €.   399,00

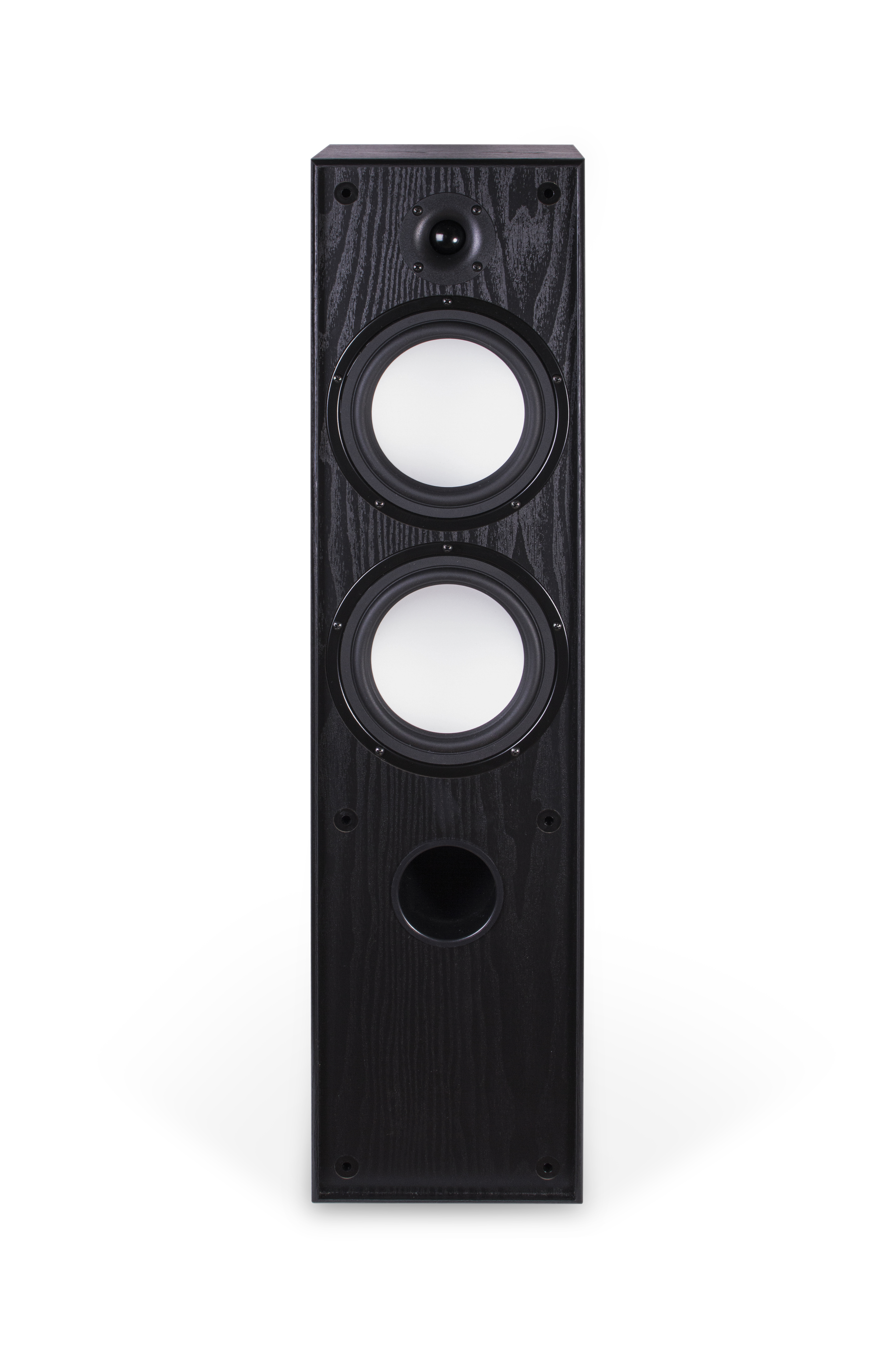

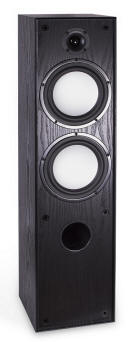

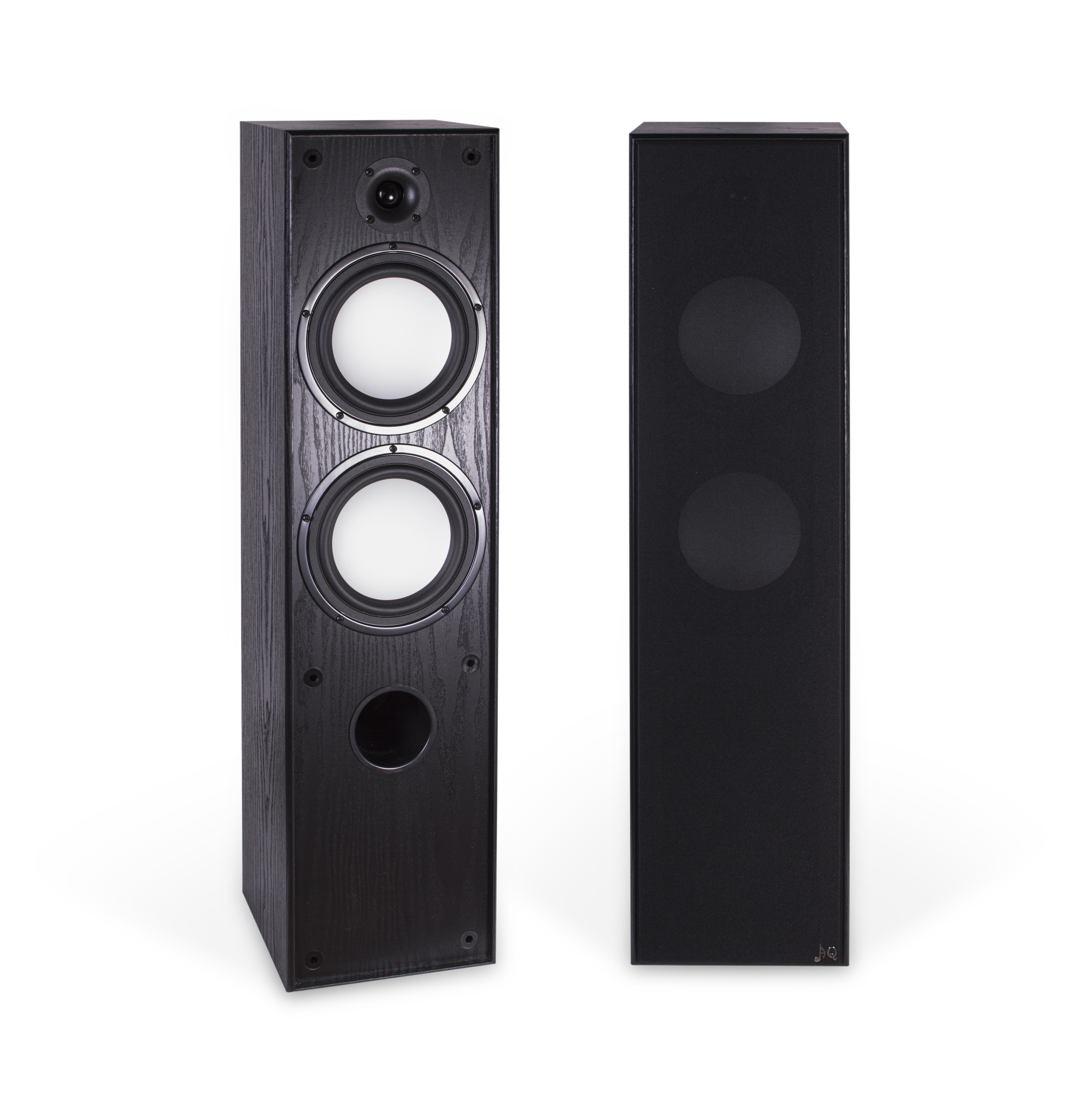

TANGO 98 il design snello della torre è caratterizzato da doppi driver mid-bass da 6 "con cono in alluminio leggero e avanzato e robusto telaio in acciaio. Le alte frequenze sono gestite da un preciso tweeter a cupola Vifa con magnete al neodimio  con  calotta seta   e  raffreddamento a ferrofluido  .Gli altoparlanti della serie AQ Tango Acoustique hanno  le tecnologie più avanzate nella produzione di altoparlanti. I macchinari di precisione computerizzati vengono utilizzati per creare un cabinet di alta qualità utilizzando pannelli in MDF inerti con un attraente laminato naturale in legno. Questa costruzione è estremamente resistente, esteticamente gradevole, economica e, soprattutto, produce una qualità del suono eccezionale I robusti pannelli MDF da 16 mm sono lavorati con precisione e incollati per formare un involucro rigido e non risonante. Il rame OFC puro con diametro 1mm2 gestisce tutti i cavi interni e tutti i collegamenti sono saldati termicamente. Il crossover di precisione è installato su un pannello indipendente.Bassreflex sul pannello frontale (l'altoparlante può essere montato direttamente a parete),
SPECIFICHE Sistema: 2 vie, bass-reflex, con attacco frontale Tweeter: 1 x 1 "cupola in seta Vifa Mid-Woofer: cono in alluminio 2 x 6 " Impedenza: 8 OhmGestione della potenza: picco 80W / 160W Sensibilità: 87dB / 1W / 1mRisposta in frequenza: 40Hz - 20kHz entro 10 dB Pendenza del crossover: 12,6 dB / oct Cablaggio interno: cablaggio punto-punto Dimensioni (lxhxp): 194 x 780 x 256 mm Peso: 10,5 kg Finiture: frassino nero
Slender tower design features dual 6” mid-bass drivers with advanced strong lightweight aluminum cone and robust steel frame. High frequencies are handled by precise ¾” polypropylene dome tweeter and, together with the mid-bass drivers, create tuneful combo that can handle any genre or movie score with aplomb. Strong 16mm MDF panels are precisely machined and glued to form a rigid, non-resonant enclosure. Pure OFC copper with 1mm2 diameter handles all internal wiring and all connections are thermally soldered. Precision crossover is installed on an independent panel. Tango 88can really tango and will make listeners want to dance, contemplate or watch movies with equivalent assurance and consistent delivery. Tango 88 sings at home and works very well in commercial applications.SPECIFICATIONSSystem: 2-way, bass-reflex, front-portedTweeter: 1 x 1” Vifa silk domeMid-Woofer: 2 x 6” aluminium cone Impedance: 8 Ohm Power Handling: 80W / 160W peakSensitivity: 87dB / 1W / 1mFrequency Response: 40Hz - 20kHz within 10dB Crossover Slope: 12.6 dB/oct Internal Cabling: point-to-point wiring Dimensions (wxhxd): 194 x 780 x 256mm Weight: 10.5kg Finishes: Black Ash

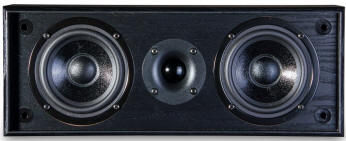

AQ  TANGO 91 IT                                                                           Offerta  €.  239,00

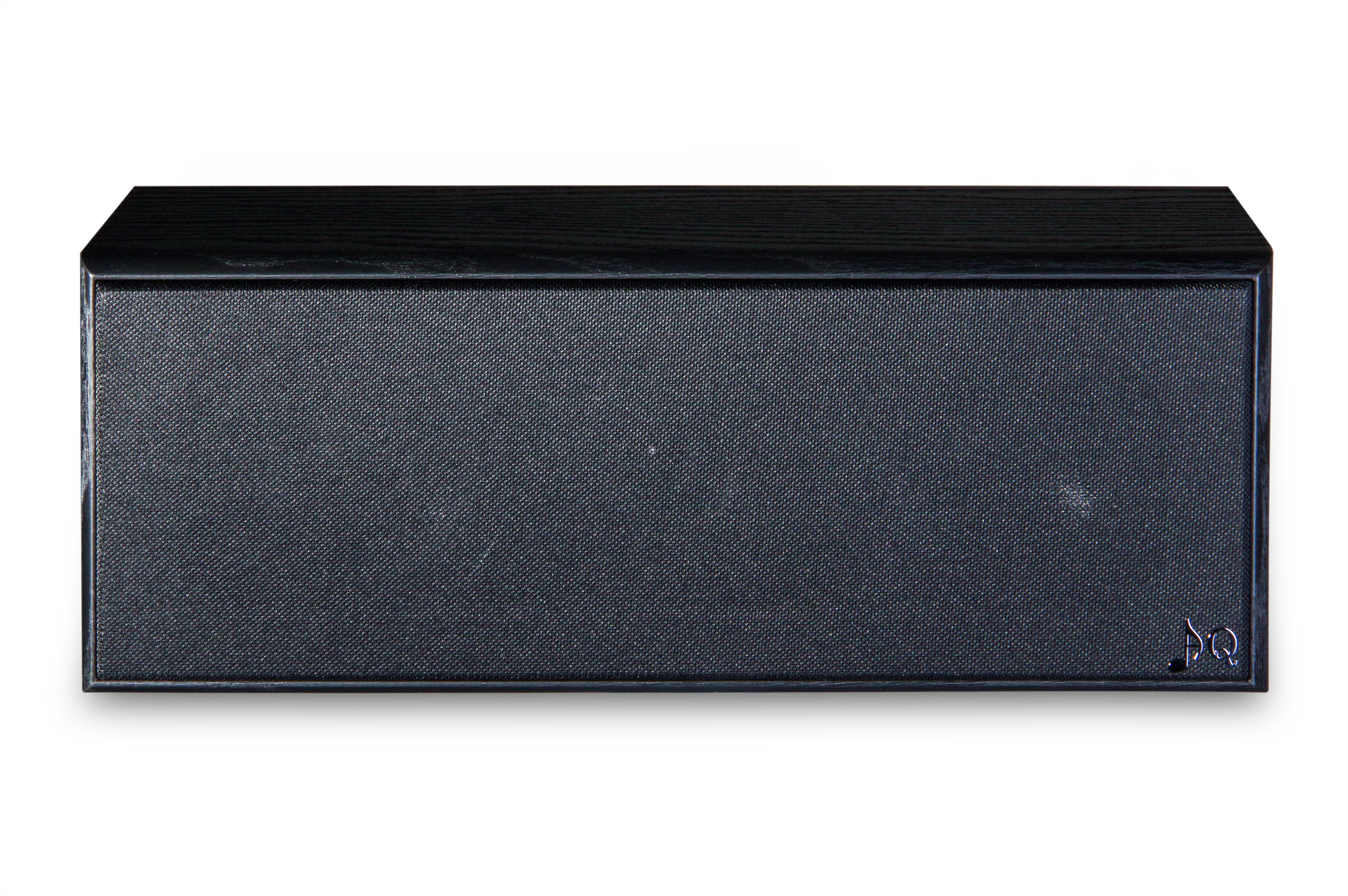

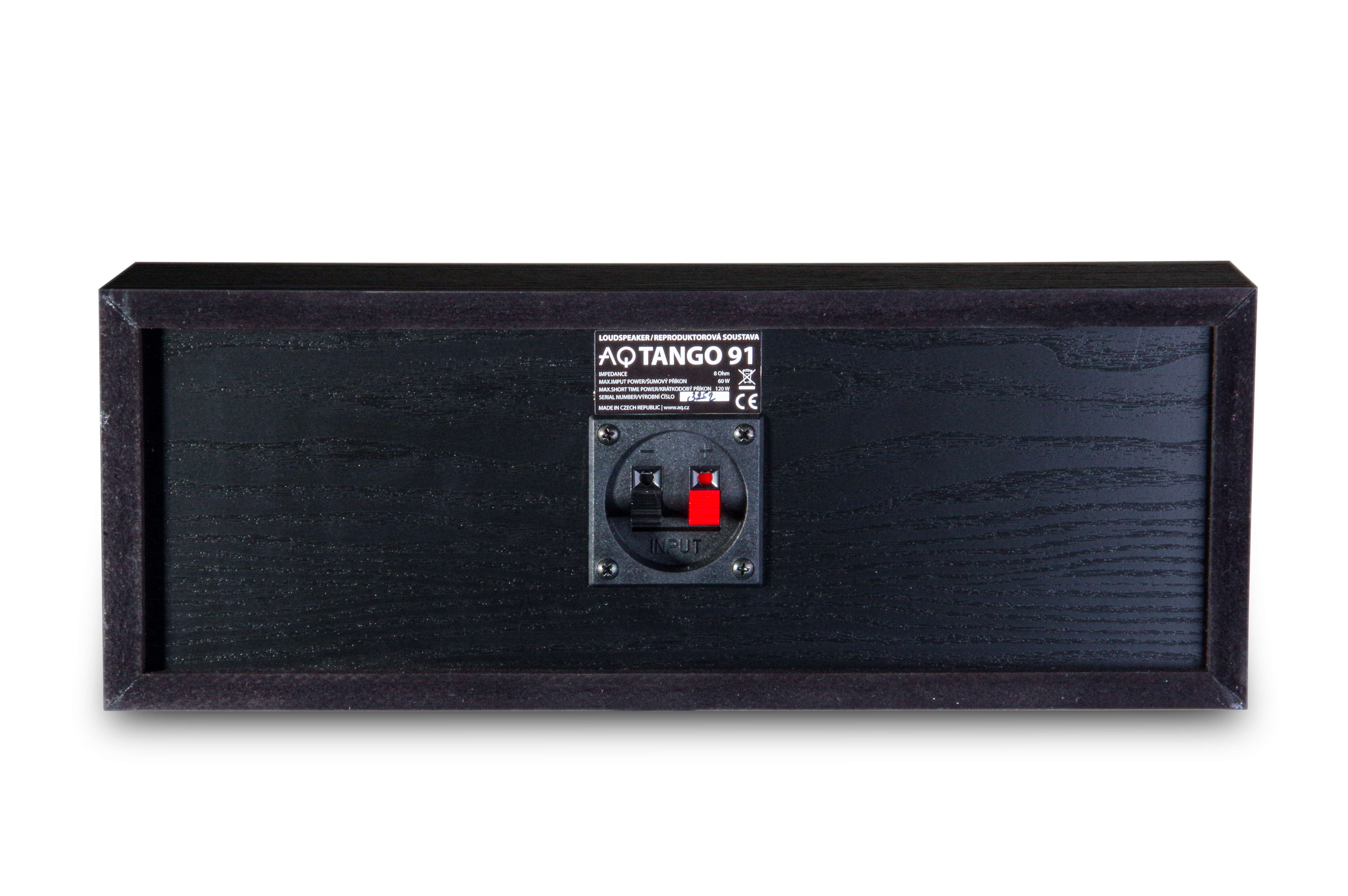

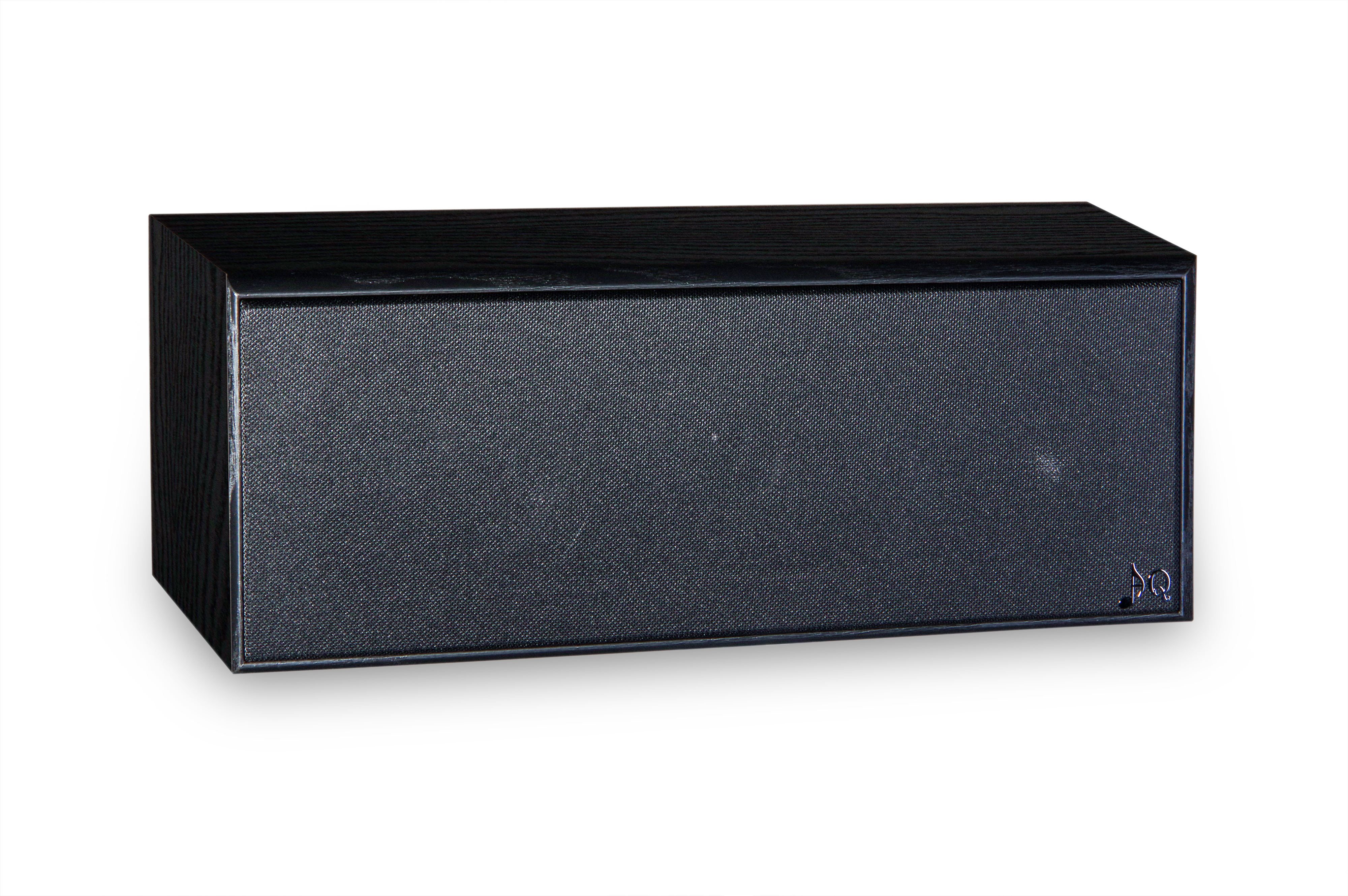

Canale centrale dedicato compatto e con porte per l'home theater. Due driver mid-bass e il preciso tweeter   Vifa con magnete al neodimio  con  calotta seta   e  raffreddamento a ferrofluidosono configurati nella geometria D’Apollito su un'equazione perfettamente adatta per l'home theater di alta qualità. I driver dei bassi hanno un cono di carta trattato, un rivestimento in gomma a bassa perdita e un robusto telaio in acciaio.Tango 91 eccelle nella riproduzione della voce umana, dando vita a dialoghi perfettamente comprensibili in tutti i tipi di film. La compattezza di Tango 91 consente installazioni TV vicine e può anche essere montata a parete. Tango 91 supera senza sforzo il suono poco brillante dei televisori a schermo piatto di oggi.SPECIFICHE Sistema: configurazione D’Apollito a 2 vie Tweeter: 1 x 1 "cupola in seta Vifa Mid-Woofer: cono di carta 2 x 4,5 " Impedenza: 8 Ohm Gestione della potenza: picco 60W / 120W Sensibilità: 86B / 1W / 1m Risposta in frequenza: 74Hz - 30kHz entro 10 dB Pendenza del crossover: 6,6 dB / oct Cablaggio interno: cablaggio punto-punto Dimensioni (lxhxp): 368 x 136 x 97 mm Peso: 3,3 kg Finiture: frassino nero
  Compact, ported dedicated center channel for Home Theater. Two mid-bass drivers and a ¾” AQ TW11 dome tweeter are configured in D’Apollito geometry to an equation perfectly suited for high quality Home Theater. The mid-bass drivers have treated paper cone, low loss rubber surround and strong steel frame. Tango 81 excels in the reproduction of human voice, resulting in perfectly intelligible dialogues across all movie types. Tango 81compactness allows for near TV installations and can be also wall mounted. Tango 81 effortlessly outperforms the lackluster sound of today’s flat screen TVs. SPECIFICATIONS System: 2-way D’Apollito configurationTweeter: 1 x 1” Vifa silk domeMid-Woofer: 2 x 4.5” paper coneImpedance: 8 OhmPower Handling: 60W / 120W peak Sensitivity: 86B / 1W / 1m Frequency Response: 74Hz - 30kHz within 10dB Crossover Slope: 6.6 dB/oct Internal Cabling: point-to-point wiring Dimensions (wxhxd): 368 x 136 x 97mm Weight: 3.3kg Finishes: Black Ash

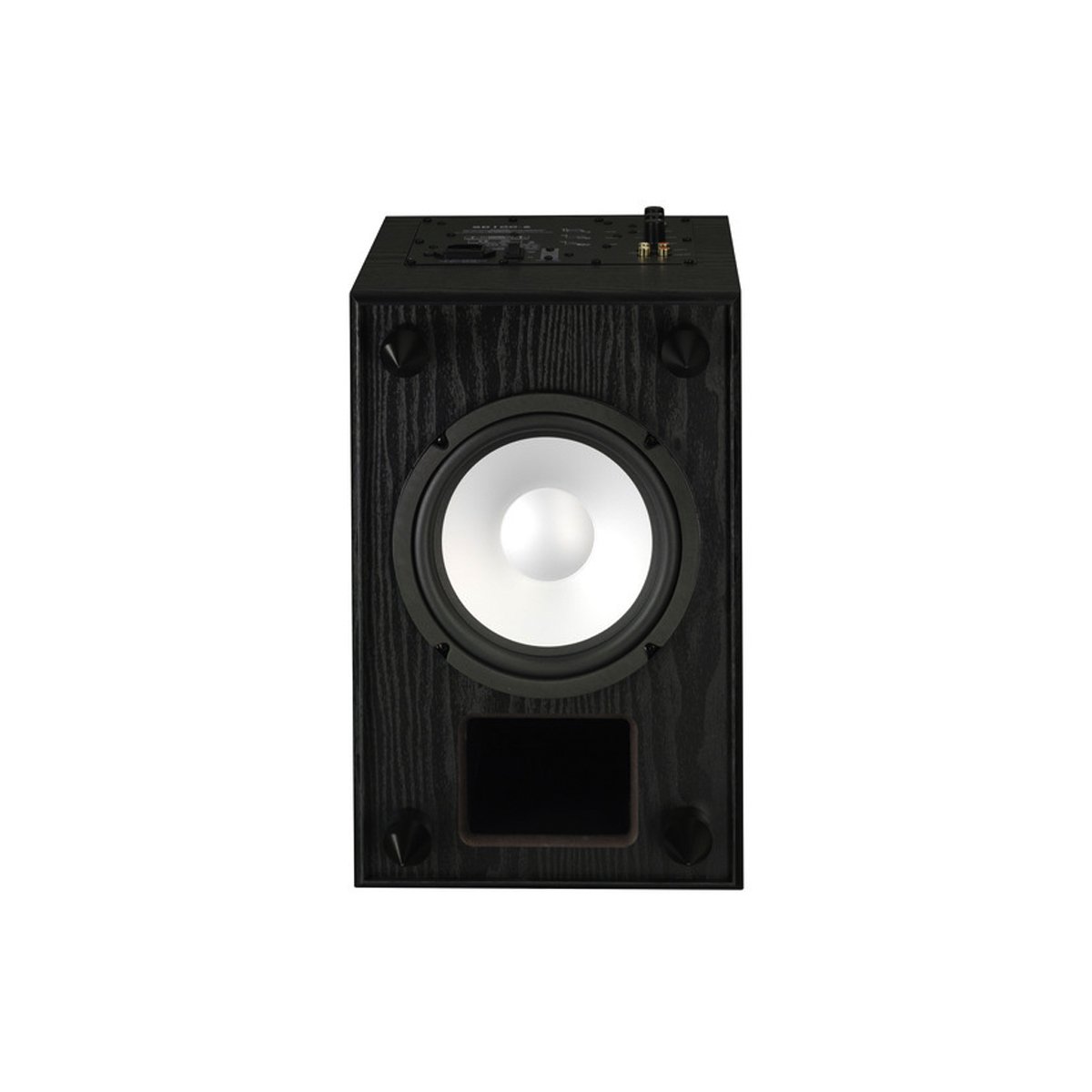

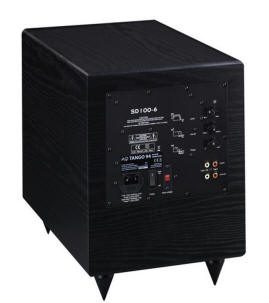

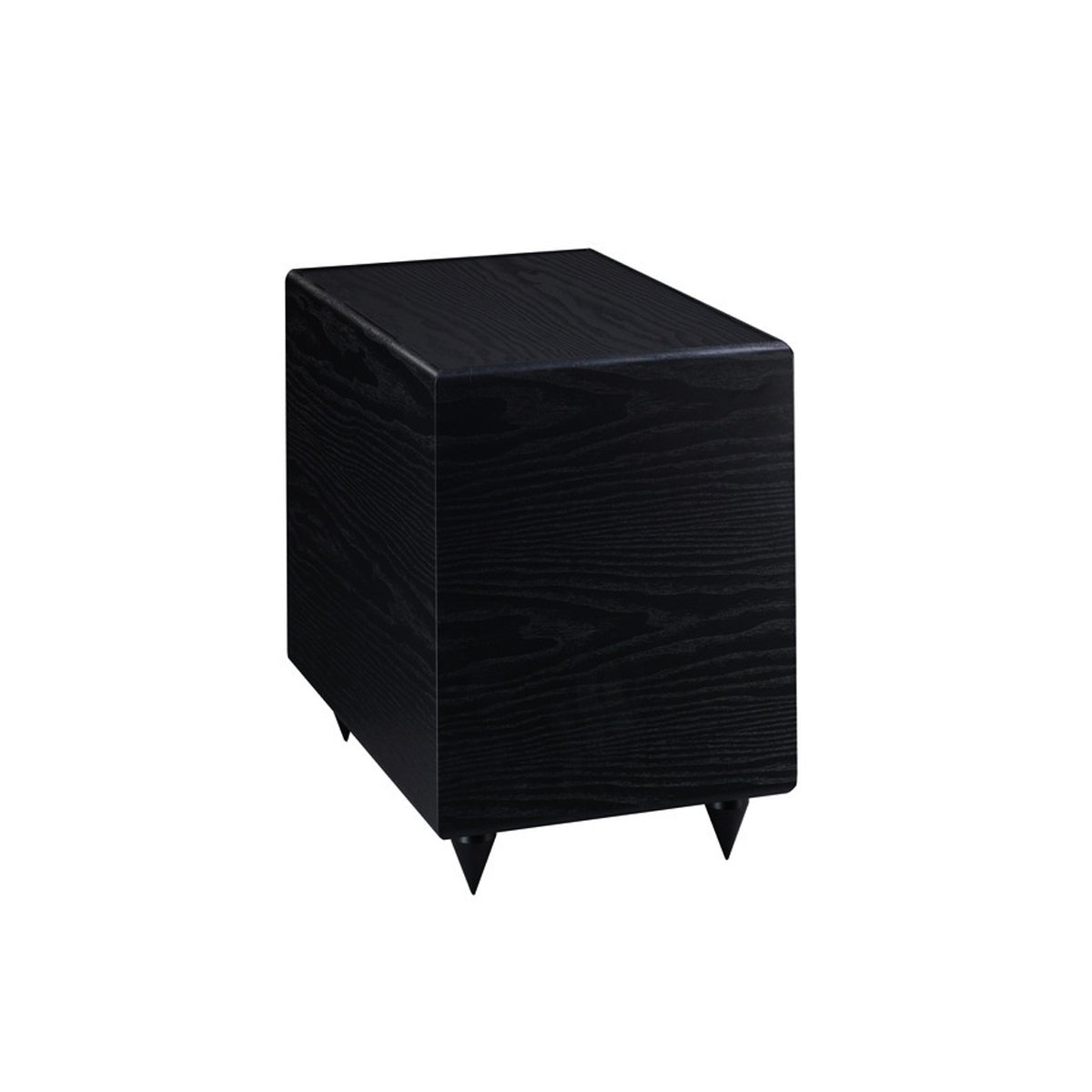

AQ  TANGO 94 IT                                                                          OFFERTA   €.   599,00


AQ Tango significa  tecnologia la  più avanzata nella produzione di altoparlanti. I macchinari di precisione computerizzati vengono utilizzati per creare un gruppo di ccabinet  di alta qualità utilizzando pannelli in MDF inerti con un attraente laminato naturale in legno. Questa costruzione è estremamente resistente, esteticamente gradevole, economica e, soprattutto, produce una qualità del suono eccezionale .L'elemento costitutivo del subwoofer Tango 94 è un driver per subwoofer da 8 "proprietario con un cono in alluminio leggero ma estremamente rigido che offre la massima durata e bassi rapidi, precisi e dinamici. Il driver del subwoofer a fuoco basso è installato in un involucro ben smorzato e rinforzato che presenta picchi regolabili, amplificatore ad alta potenza e stand-by automatico, sensibilità di ingresso regolabile, frequenza di crossover regolabile e quadrante di fase. La porta aerodinamica di nuova concezione con profilo proprietario elimina il tipico chuffing delle porte e offre un'estensione dei bassi straordinariamente pulita. Tango 94 piacerà sicuramente anche agli appassionati di home theater e agli ascoltatori di musica rock SPECIFICHE Sistema: subwoofer attivo, bass-reflex, con attacco in bassoWoofer: cono da 8 "in alluminio, down-firingAmplificatore: uscita 100W Risposta in frequenza: 30Hz - 140Hz entro 12 dB SPL massimo: 100 dB / 1m Controlli: passa-basso (40-140Hz), fase Dimensioni (lxhxp): 260 x 365 x 400 mm Peso: 12 kg Finiture: frassino nero

The human perception of sound shows that the volume required for low frequencies requires far more power than is required for midrange and high frequencies. The lowest frequency is directly proportional to the size of the woofer and the internal volume of the enclosure. For smaller loudspeakers it is physically impossible to reproduce the lowest bass. The only solution is to add a subwoofer - a dedicated loudspeaker to reproduce the lowest bass frequencies. The human ear can very accurately perceive the direction of frequencies above 100Hz. The survival of our ancestors depended on whether or not they could hear a rustling predator or a hissing snake in the grass. High frequencies are transmitted as a narrow beam, medium frequencies as a cone and low bass frequencies spread spherically. This means that low bass to approximately 100 Hz is difficult to localize, hence successful integration of a subwoofer in a Home Theater system regardless of subwoofer physical location. Subwoofers can also be effectively used with smaller satellite loudspeakers for stereo listening only. Modern receivers and integrated amplifiers feature dedicated subwoofer output. More advanced surround sound receivers can calculate and set up entire 5.1+ systems in a matter of minutes, providing for superb home cinema experience. Addition of a subwoofer into a system also relieves the main amplifier and loudspeakers from low bass duties, allowing for higher playback levels and cleaner, less distorted sound.The building block of Tango 94 subwoofer is a proprietary 8” subwoofer driver with a lightweight yet extremely rigid aluminum cone that provides maximum durability and fast, precise, dynamic bass. The bottom firing subwoofer driver is installed in a well-damped and reinforced enclosure that features adjustable spikes, auto stand-by high power amplifier, adjustable input sensitivity, adjustable crossover frequency and a phasedial. Newly developed aerodynamic port with proprietary profile eliminates typical port chuffing and provides superbly clean bass extension. Tango 94 will certainly please Home Theater aficionados and rock music listeners alike. Finish textured black ash laminate Active subwoofer uses bass driver with 20cm aluminum membrane. Suitable for space up to 35m2, active switch with automatic signal detection (switchable), upper crossover frequency and sensitivity setting. Spikes in the price, driver and bassreflex directed towards the floor. SPECIFICATIONS System: active subwoofer, bass-reflex, bottom-ported Woofer: 8” aluminium cone, down-firing Amplifier: 100W output Frequency Response: 30Hz - 140Hz within 12dBMaximum SPL: 100 dB/1m Controls: low-pass (40-140Hz), phase Dimensions (wxhxd): 260 x 365 x 400mm Weight: 12kg Finishes: Black Ash
